TONE Factory set-up guide.
Now that you've gotten your turntable you'll need to set it up! TONE factory was designed with ease of set-up in mind. Follow these 10 simple steps to get up and running.

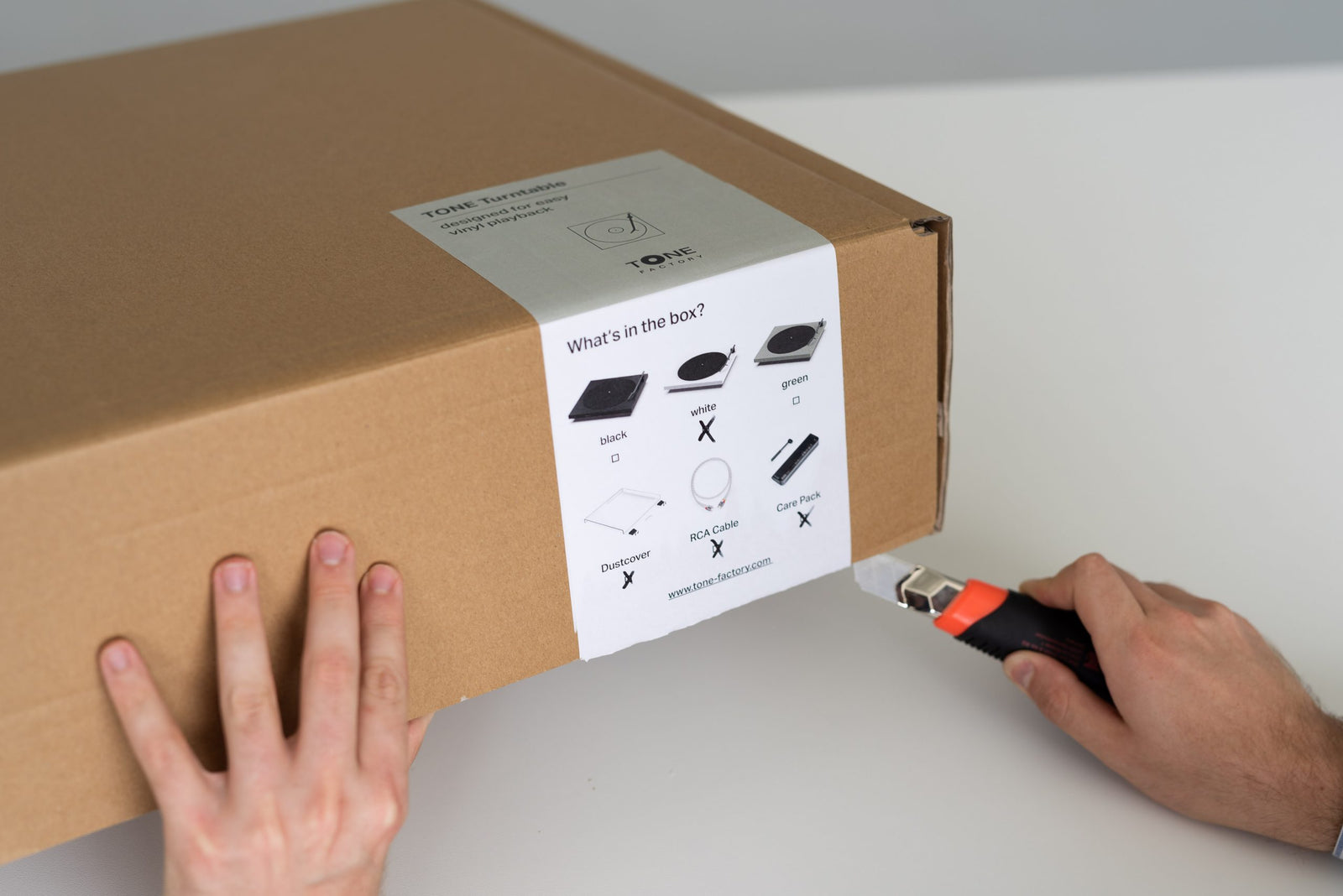

Step 1: Open the packaging.
Carefully open the packaging and keep all materials. They may be needed for warranty purposes.

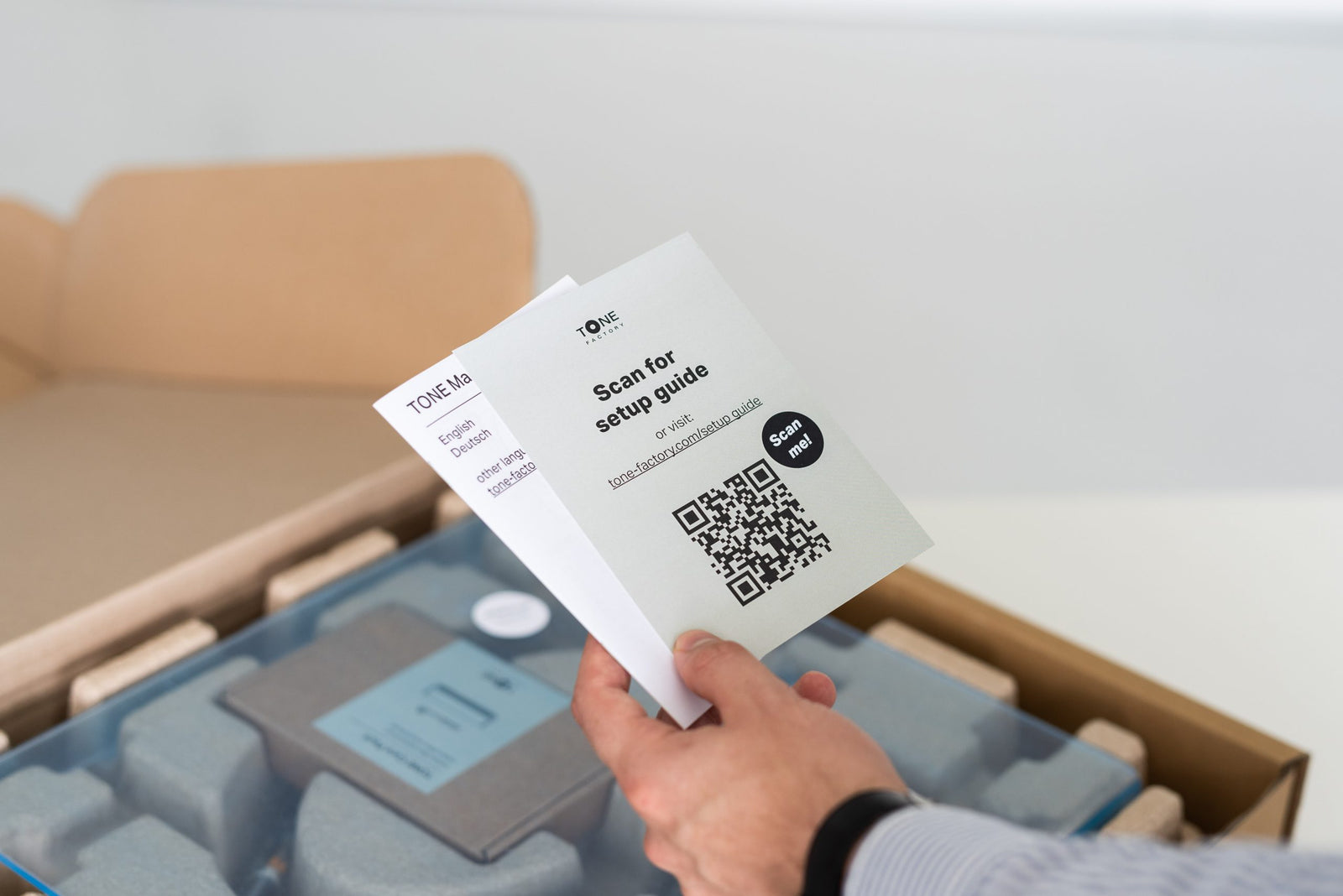

Step 2: Read the manual.
Take out the manual and read them thoroughly to ensure you understand the setup process.

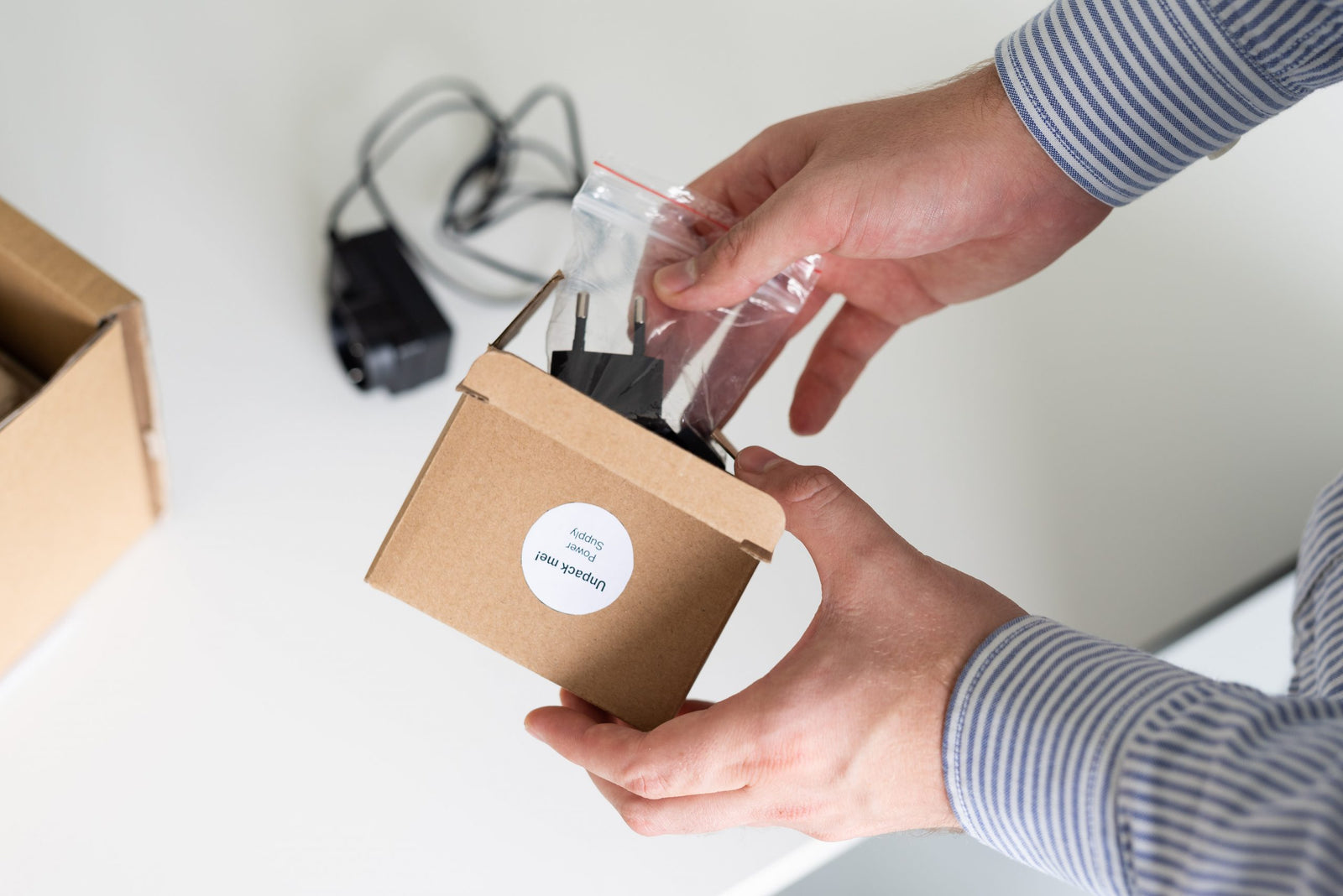

Step 3: Unpack the power supply.

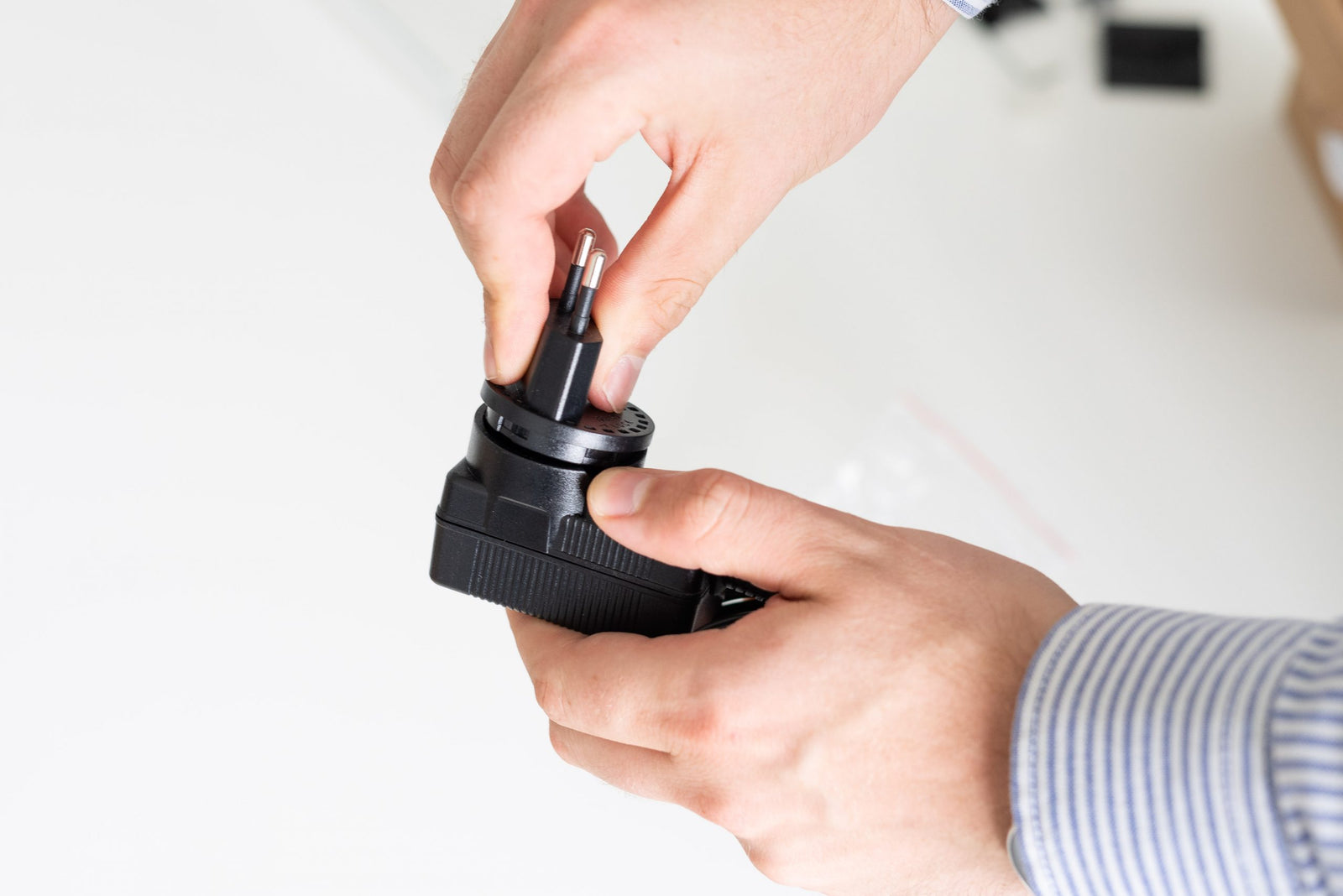

Take out the power supply and attach the correct adapter plug for your country.

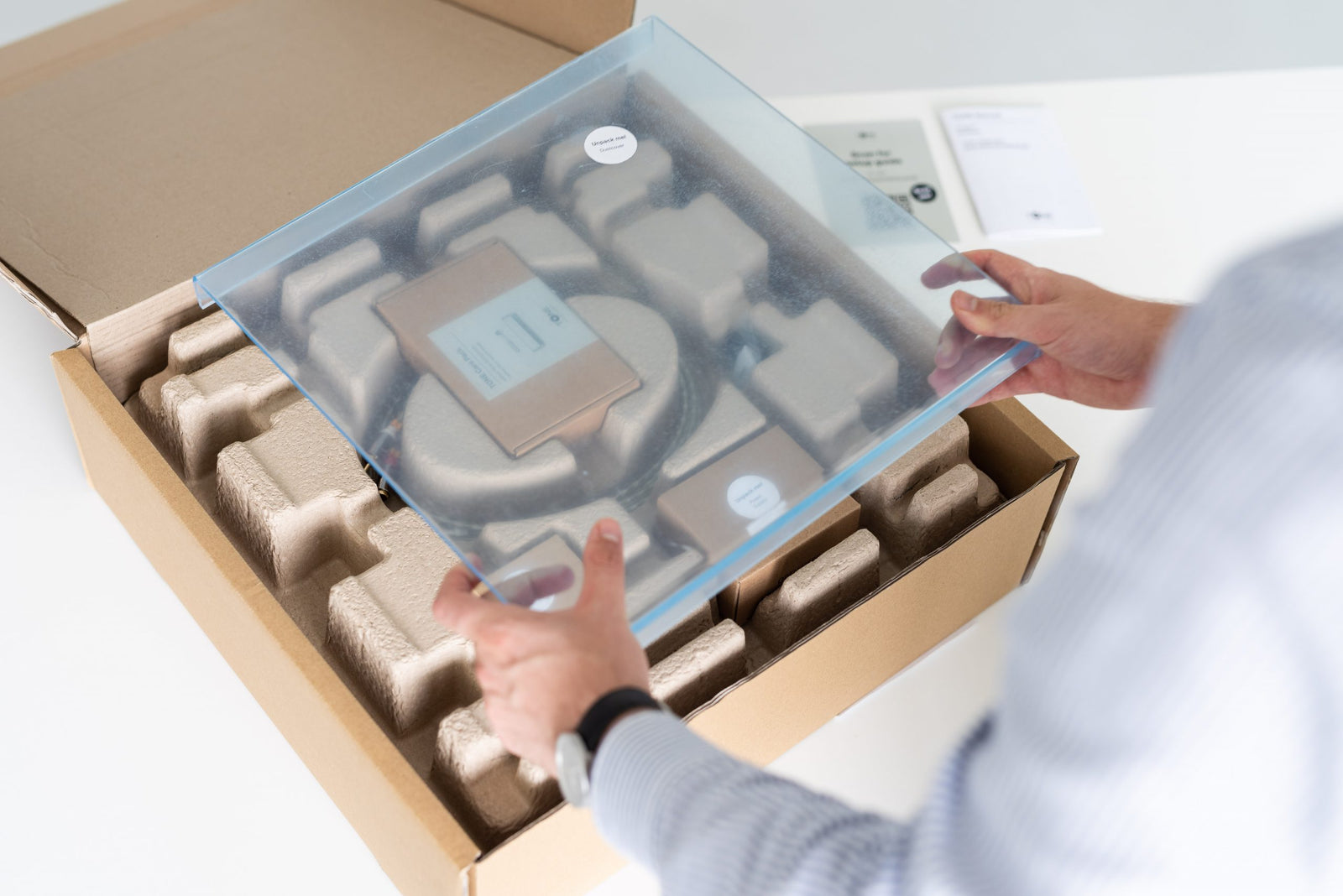

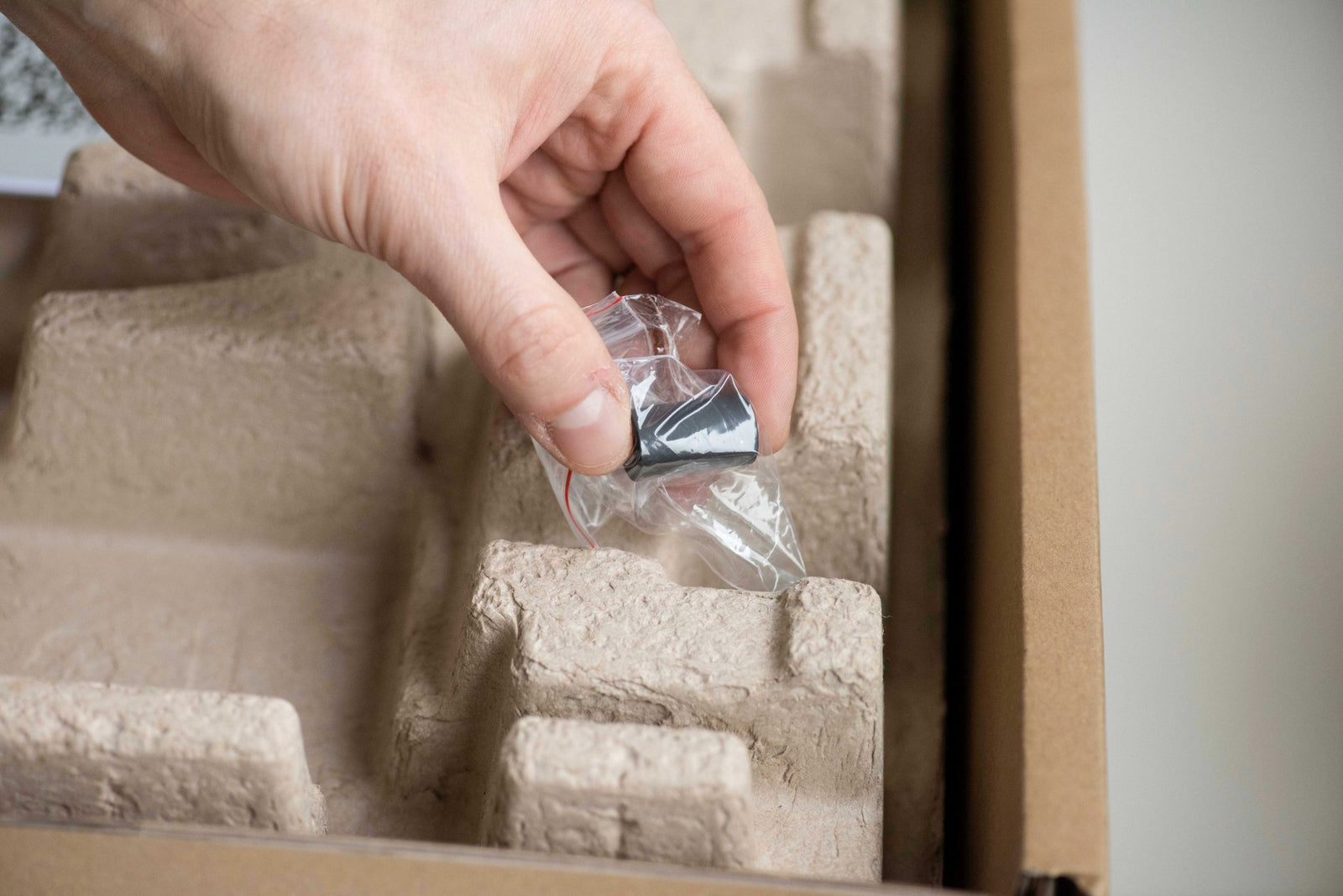

Step 4: Unpack dustcover & accessories - If applicable.
• If your TONE turntable came with a dustcover, remove it, unpack the hinges, and remove any protective materials.

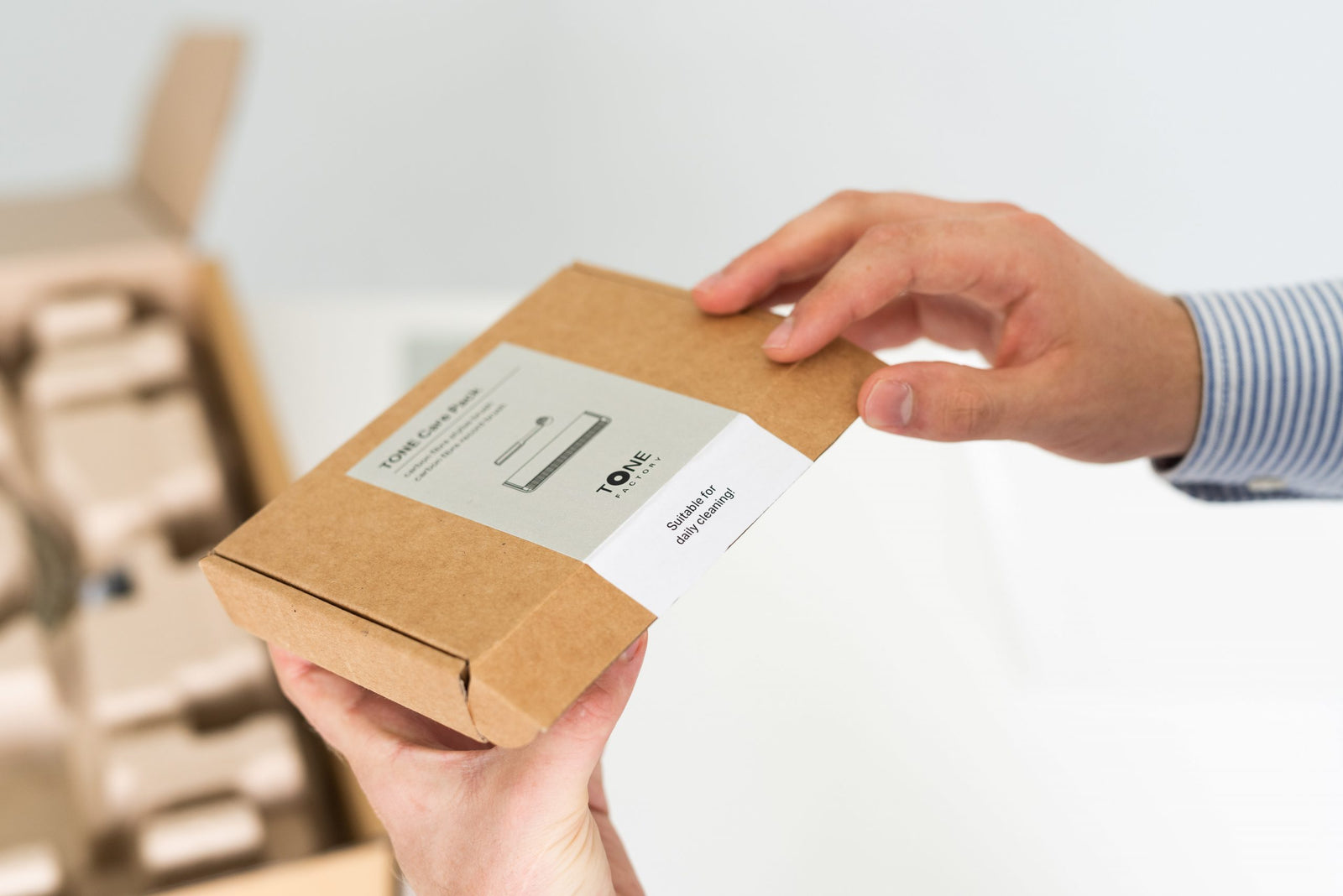

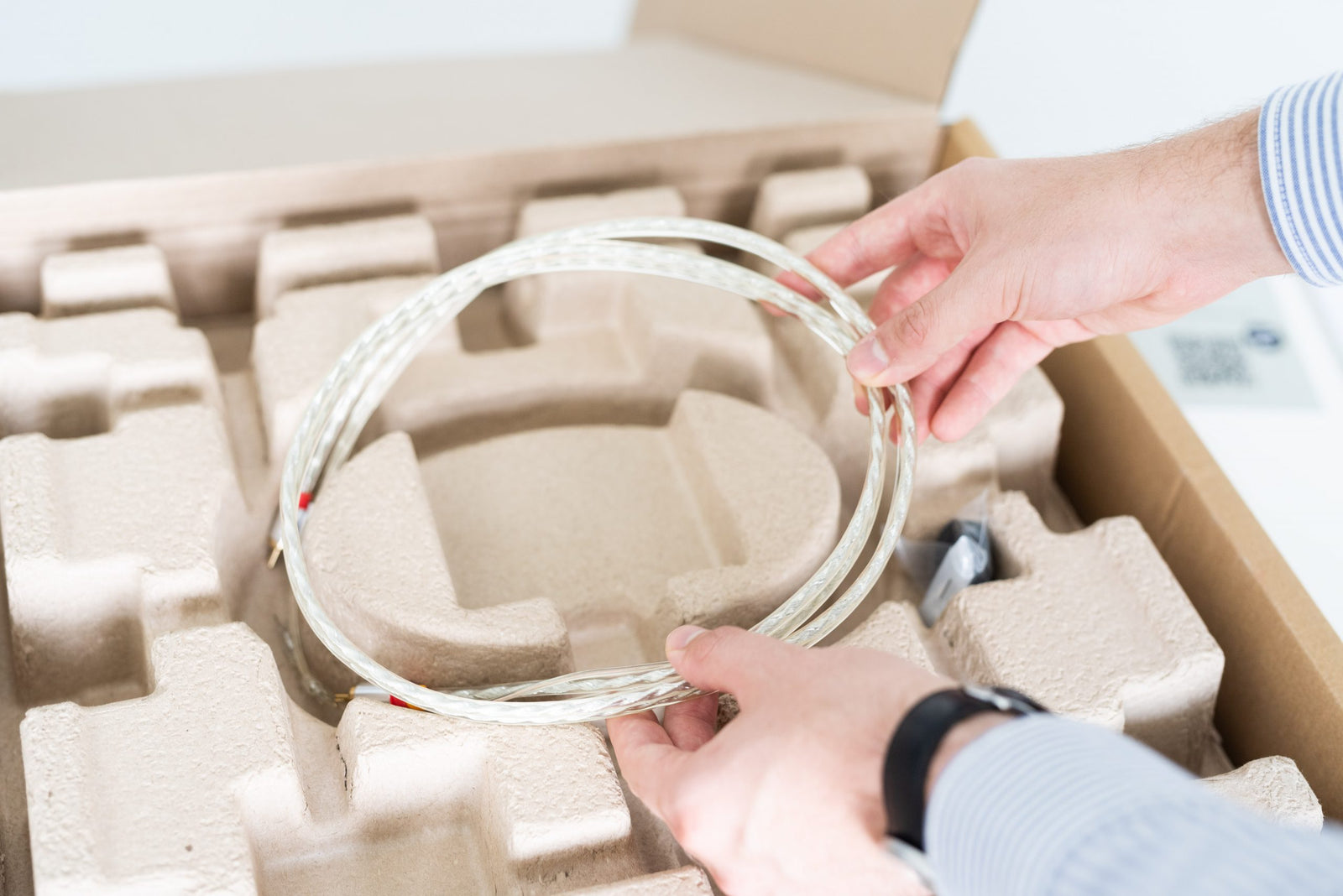

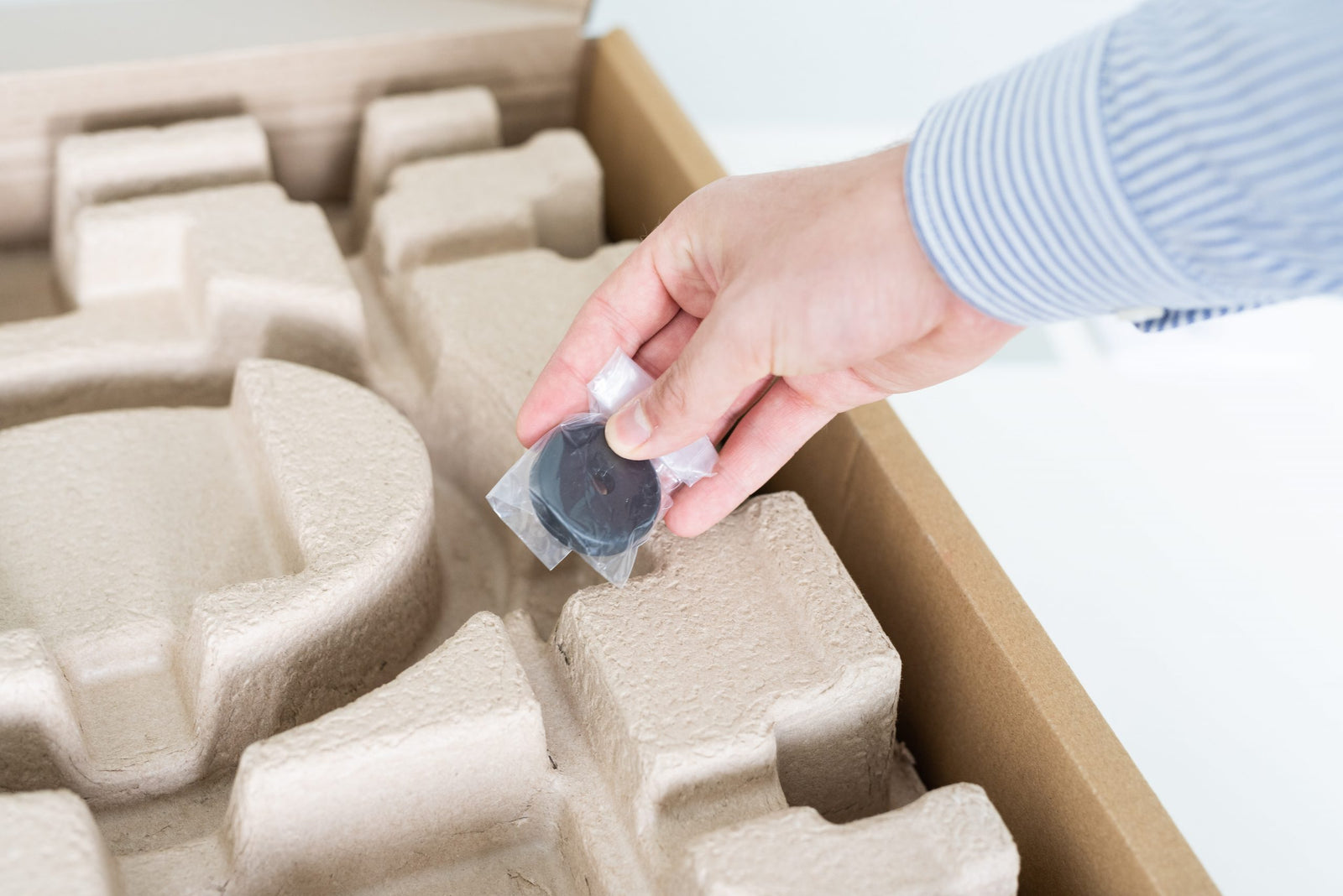

• If you've ordered a Complete pack, unpack your RCA cable, care pack, and 45 (singles) adapter.
• Take your TONE turntable out of the packaging and remove the turntable protection bag.

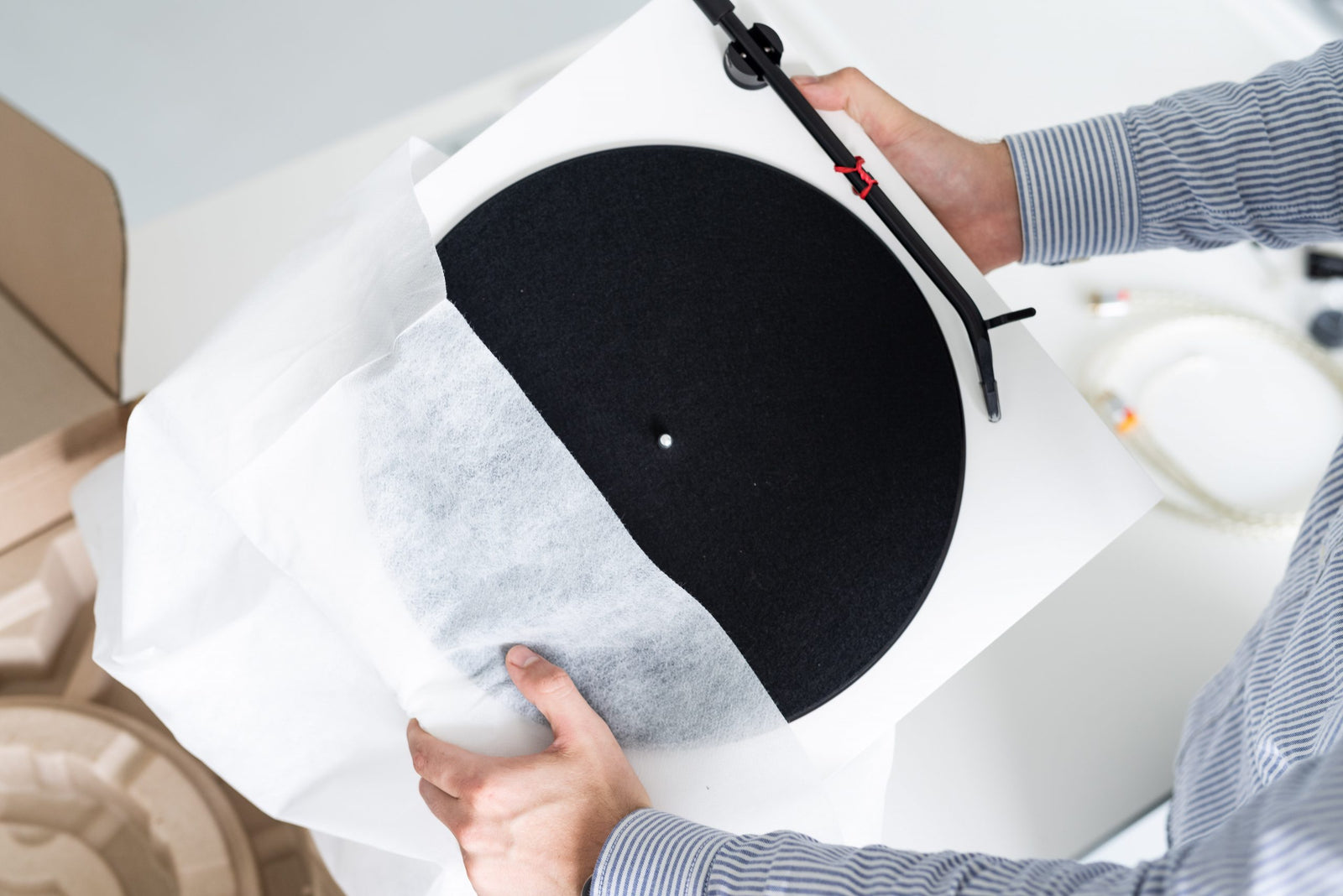

Step 5: Unpack your turntable.

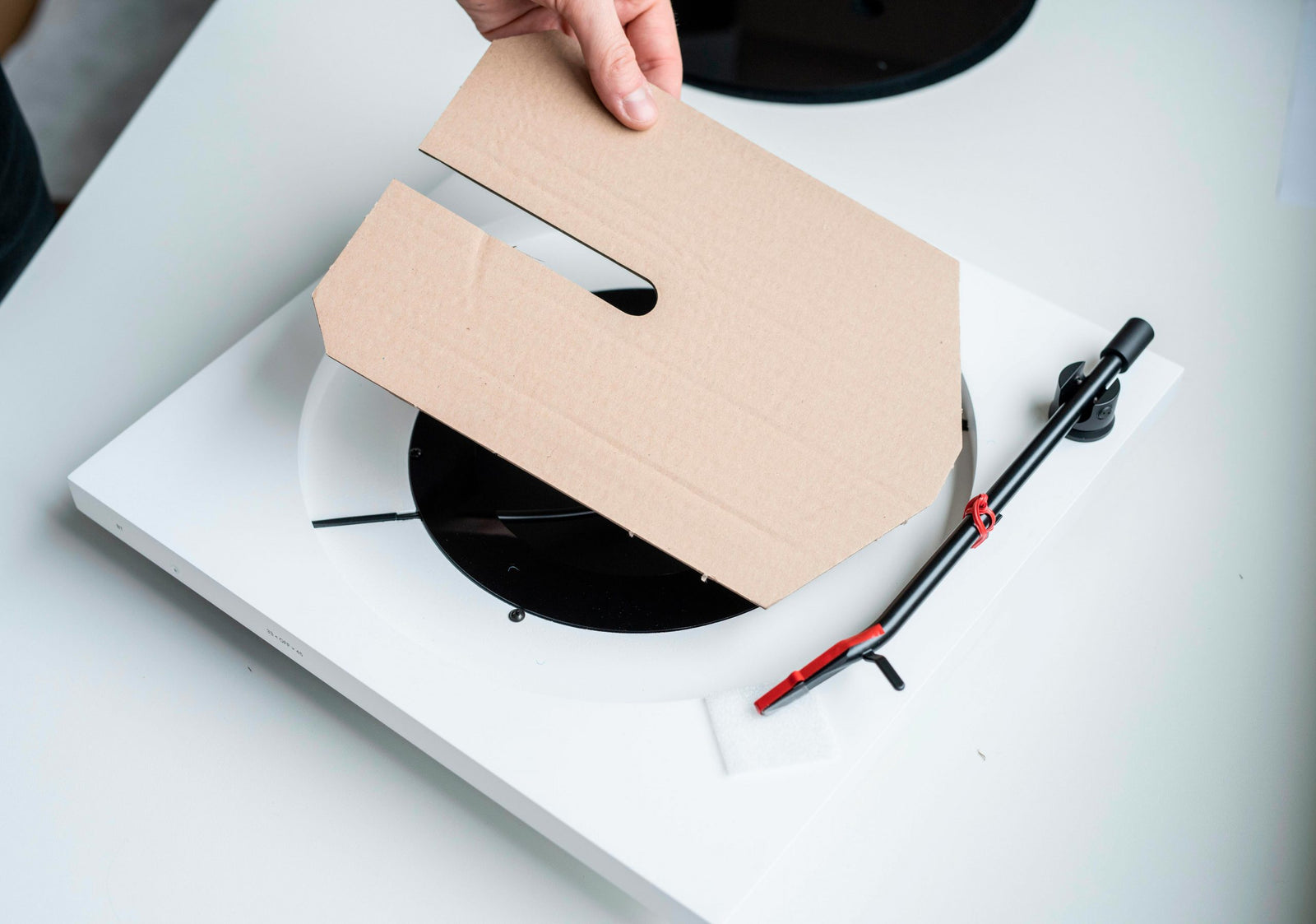

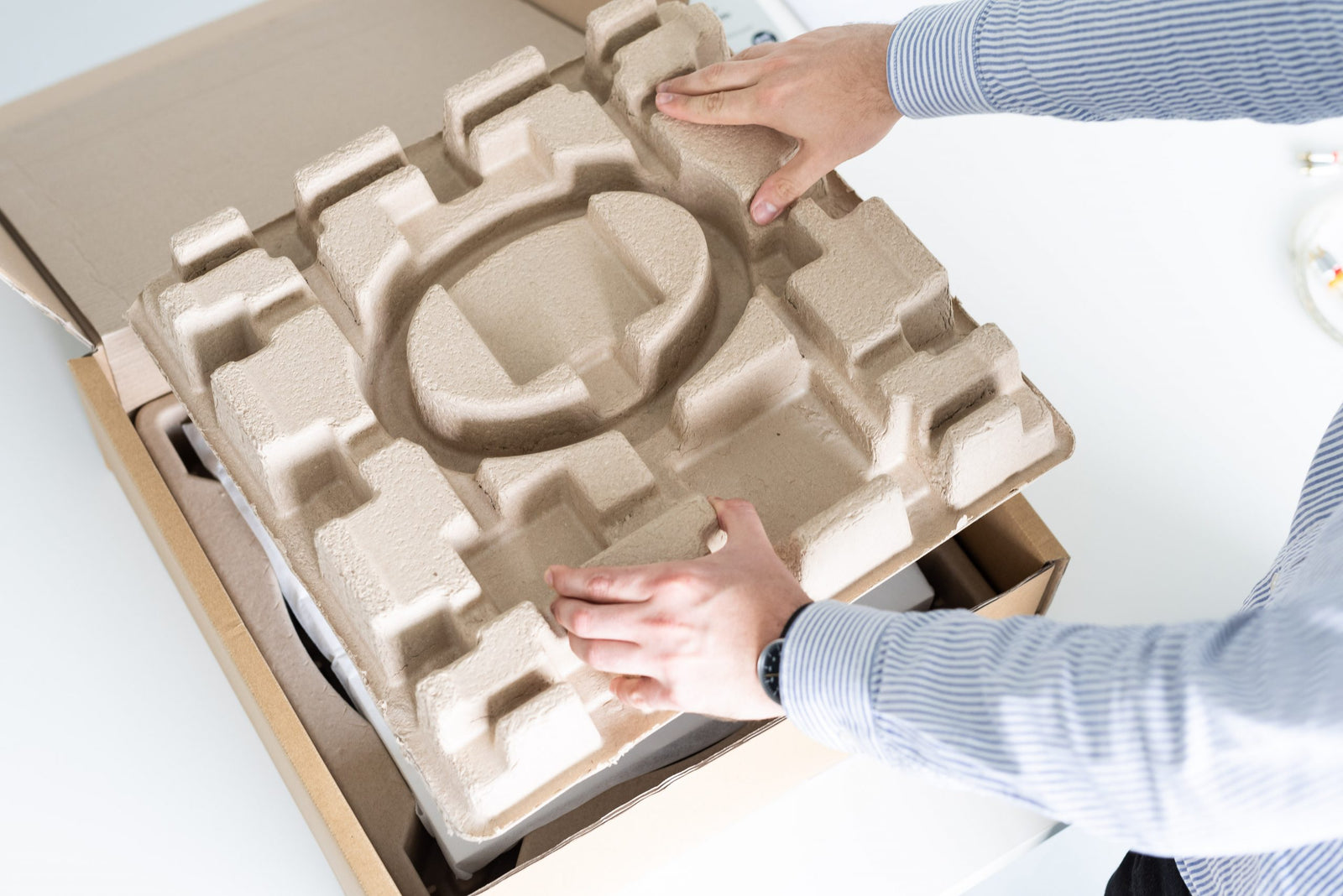

Remove top cardboard insert, take your TONE turntable out of the packaging, and remove the turntable protection bag.

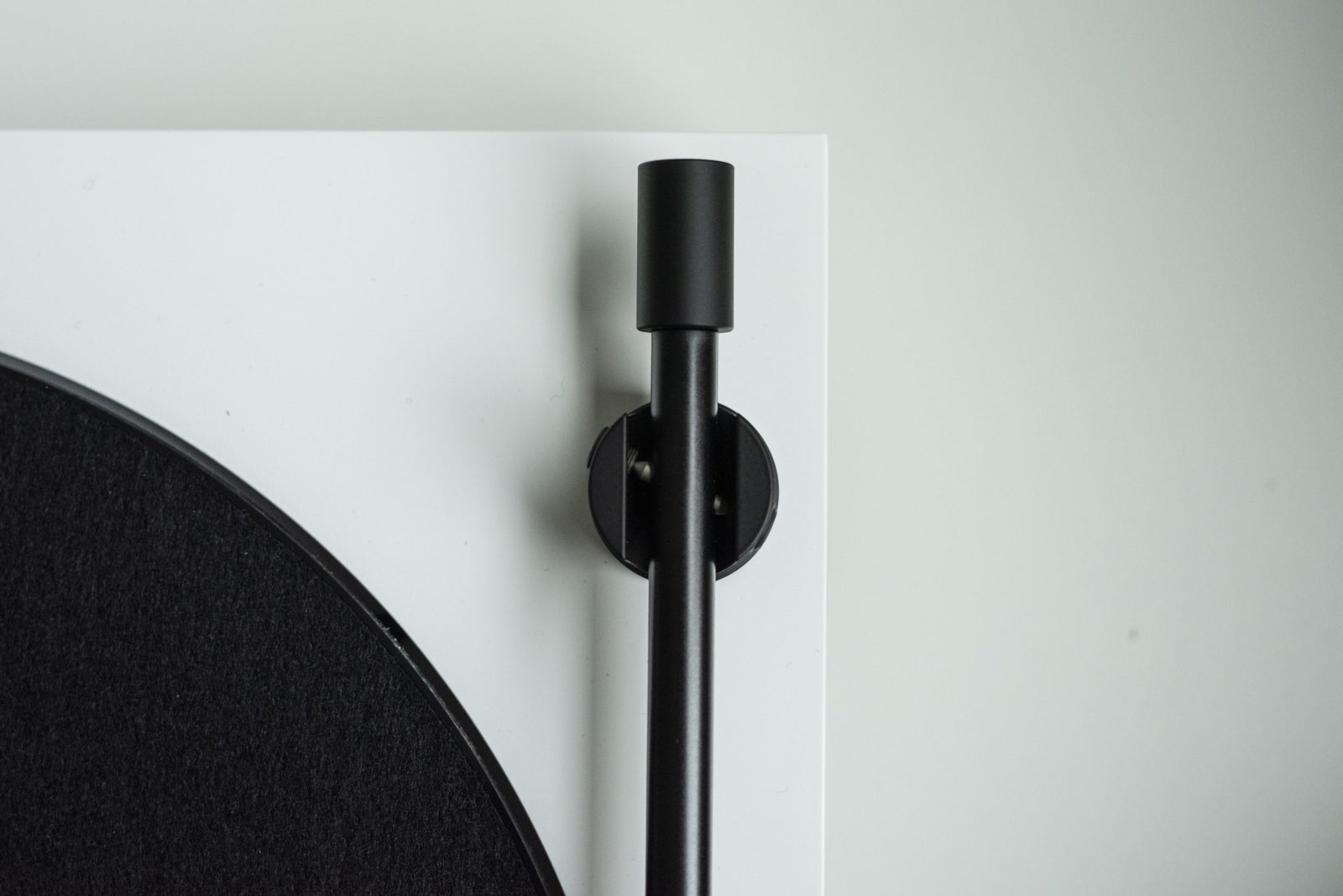

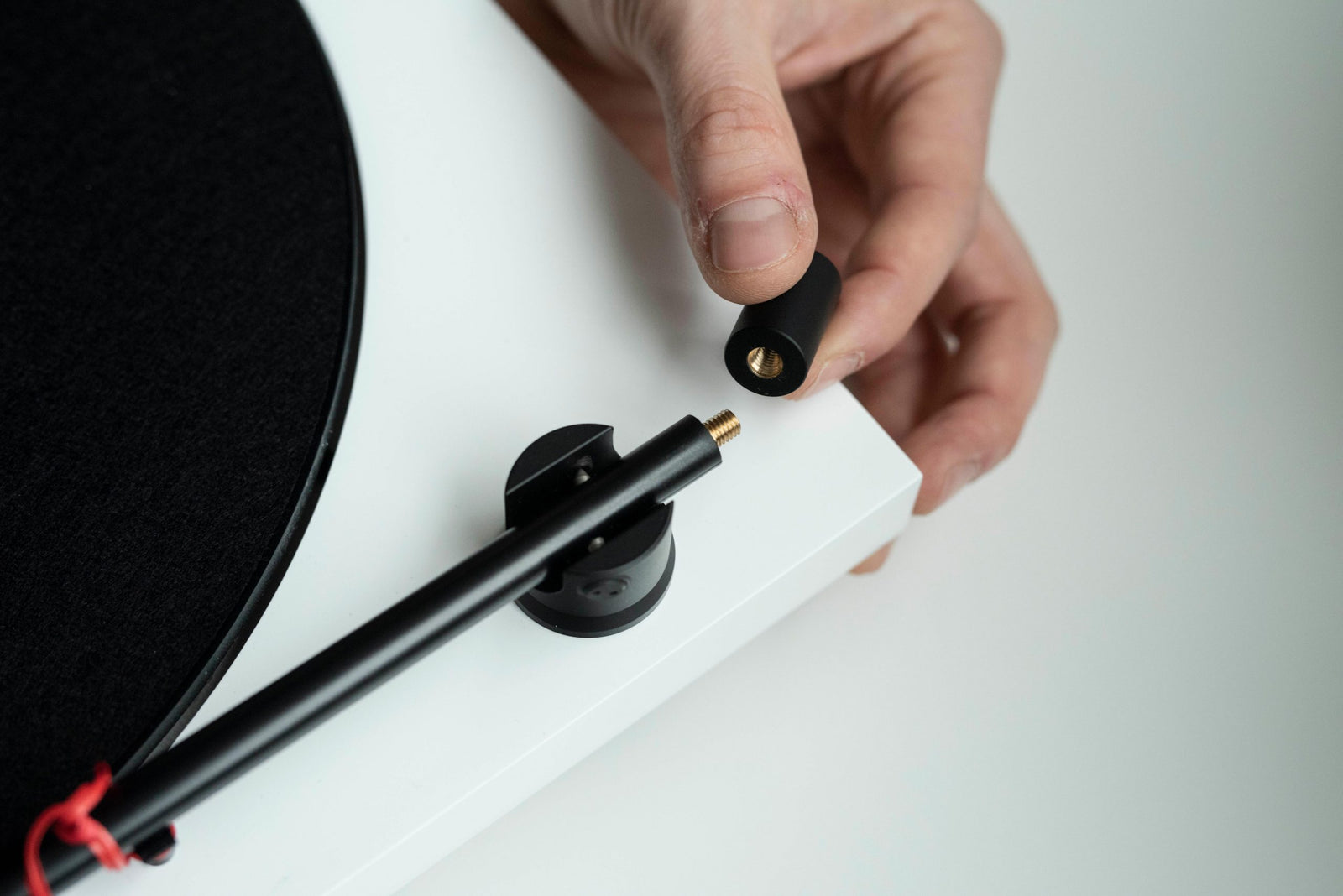

Step 6: Install the counterweight.

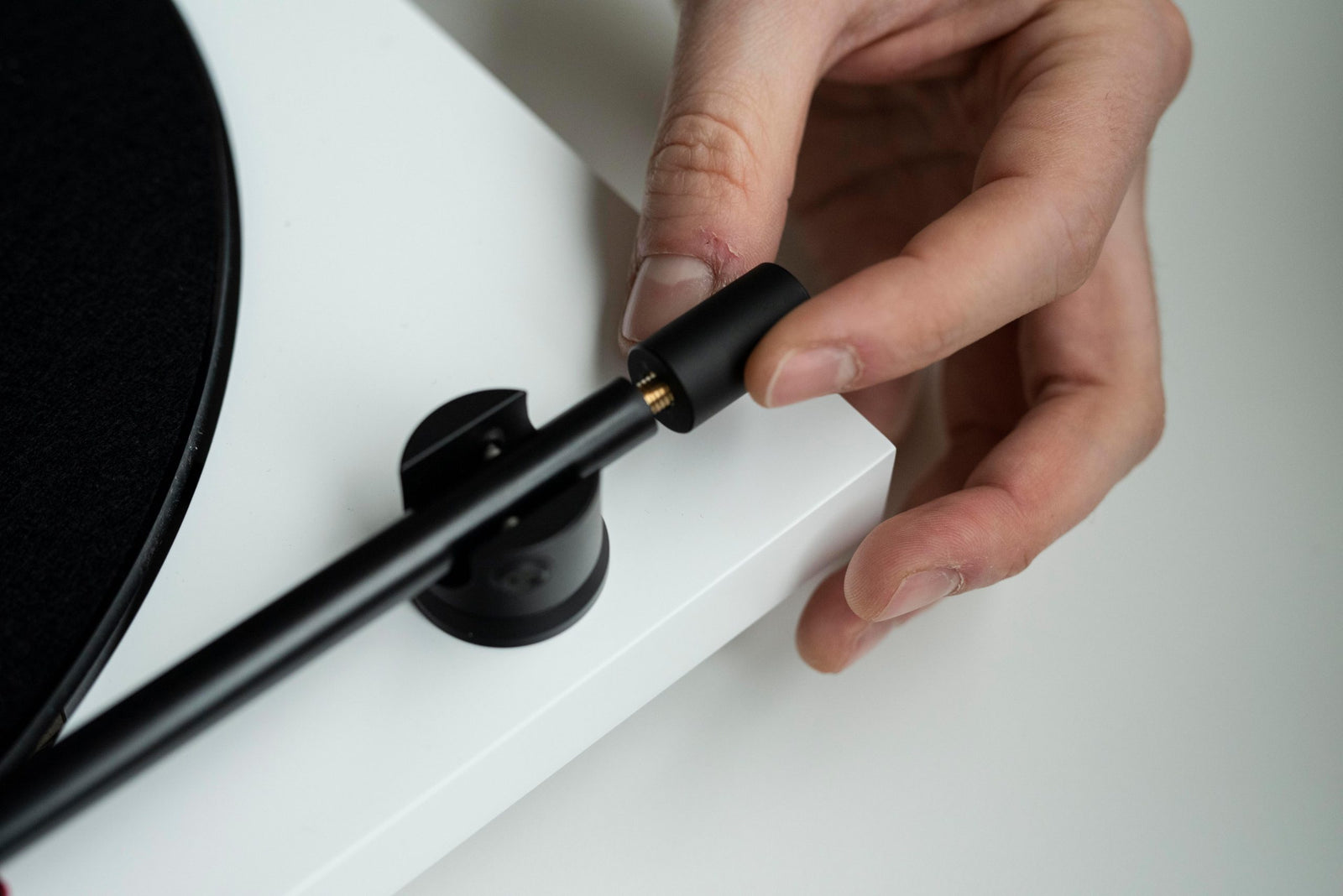

Take the counterweight out of the packaging and carefully screw it onto the tonearm until it is fully installed.

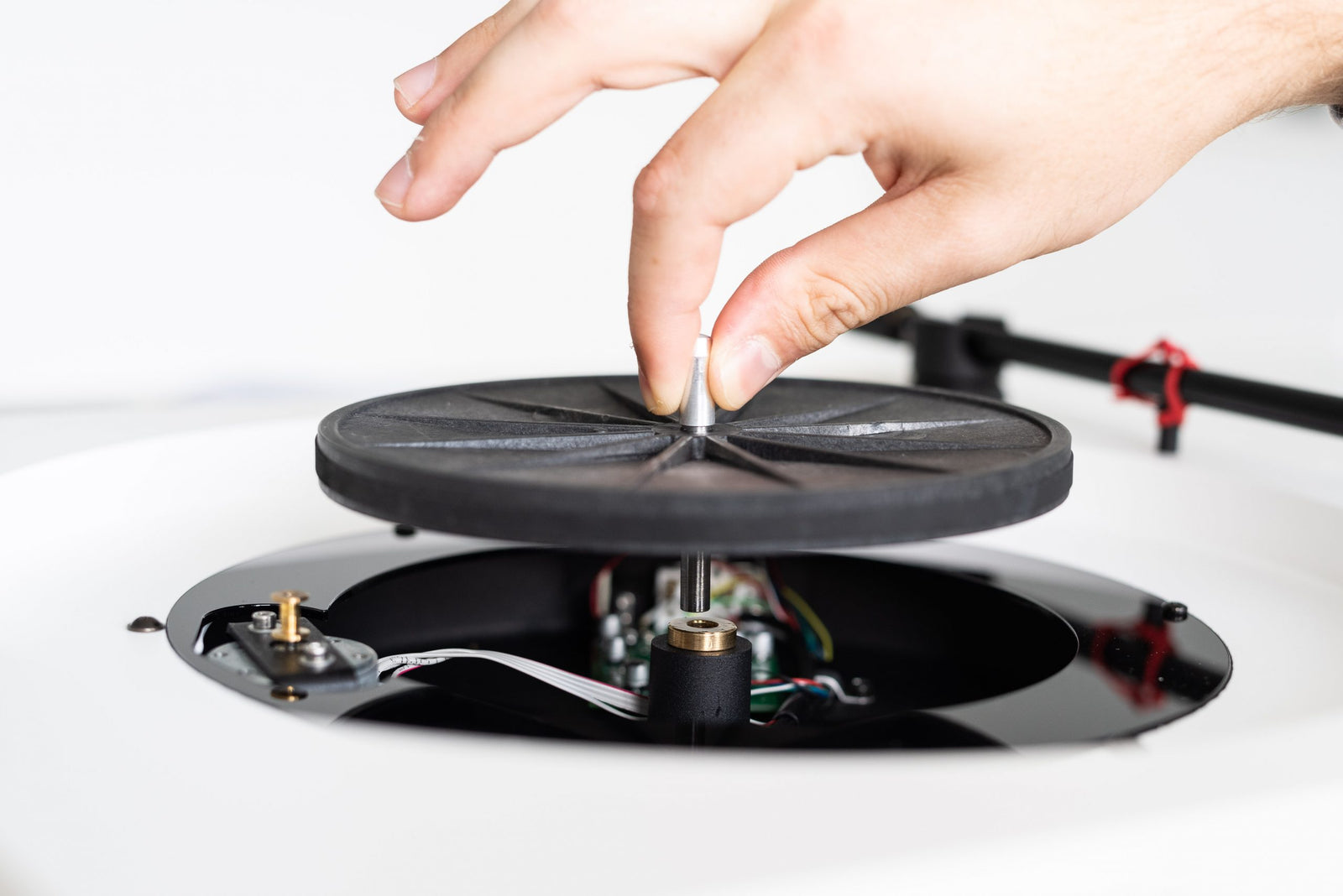

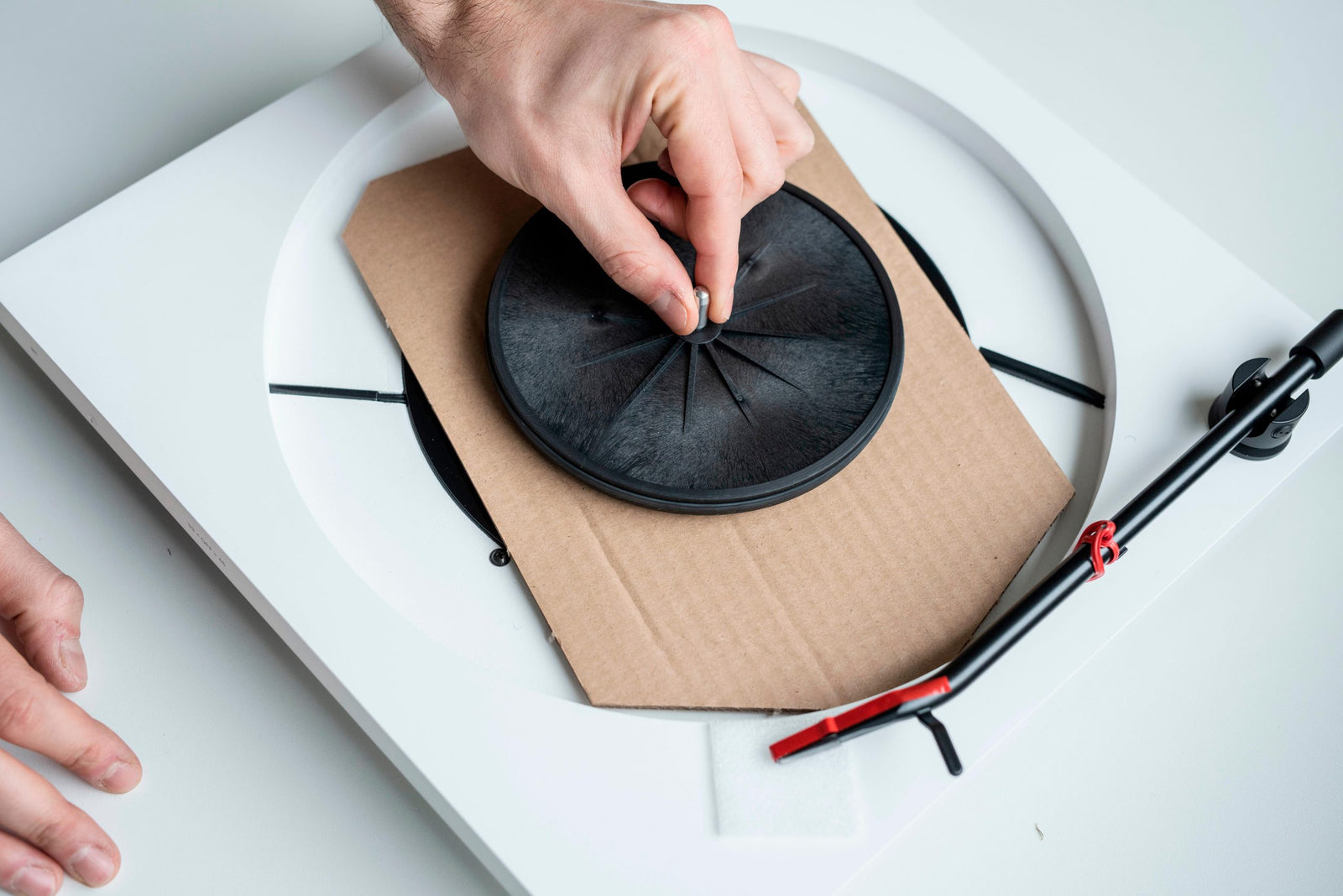

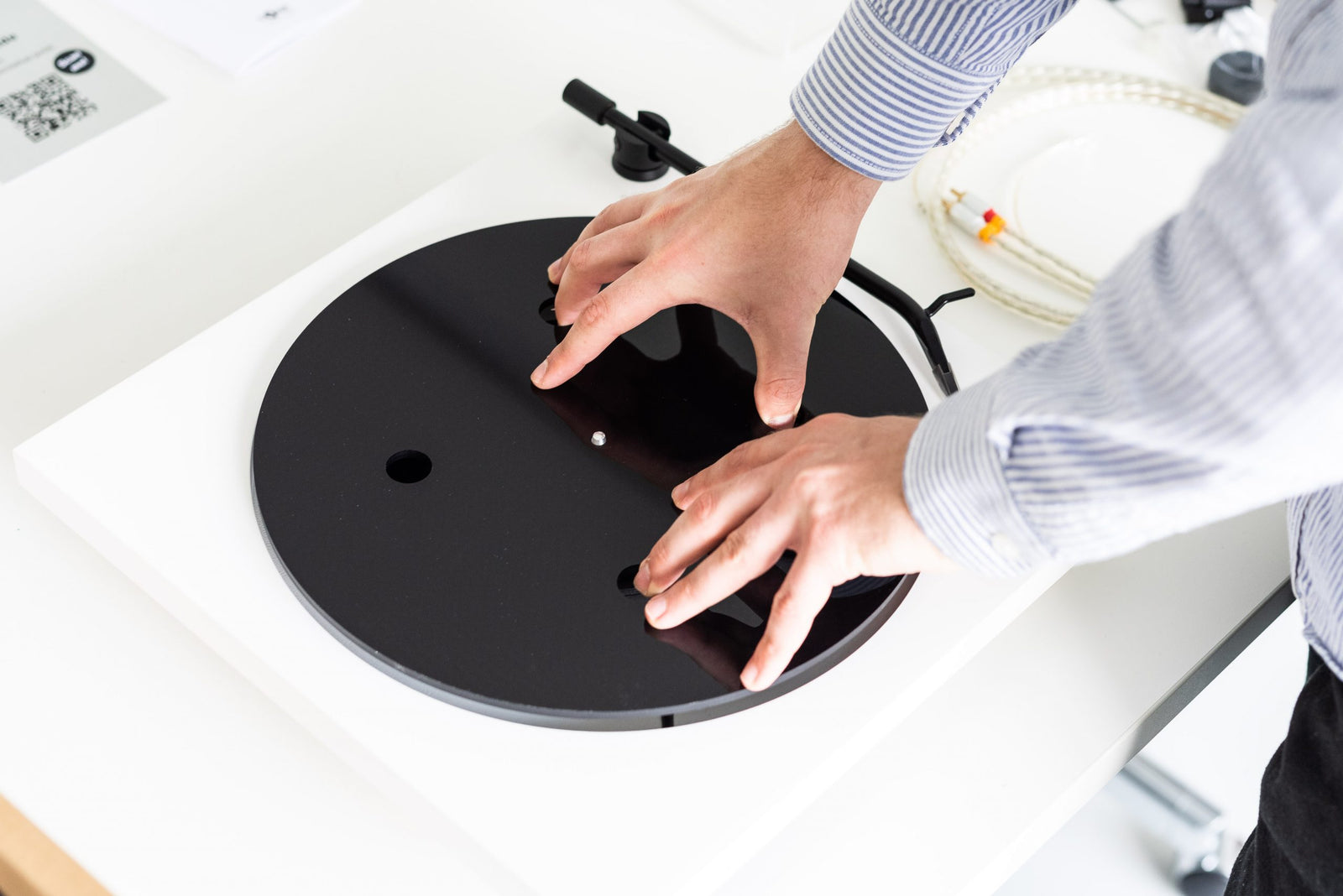

Step 7: Install the belt and sub-platter.

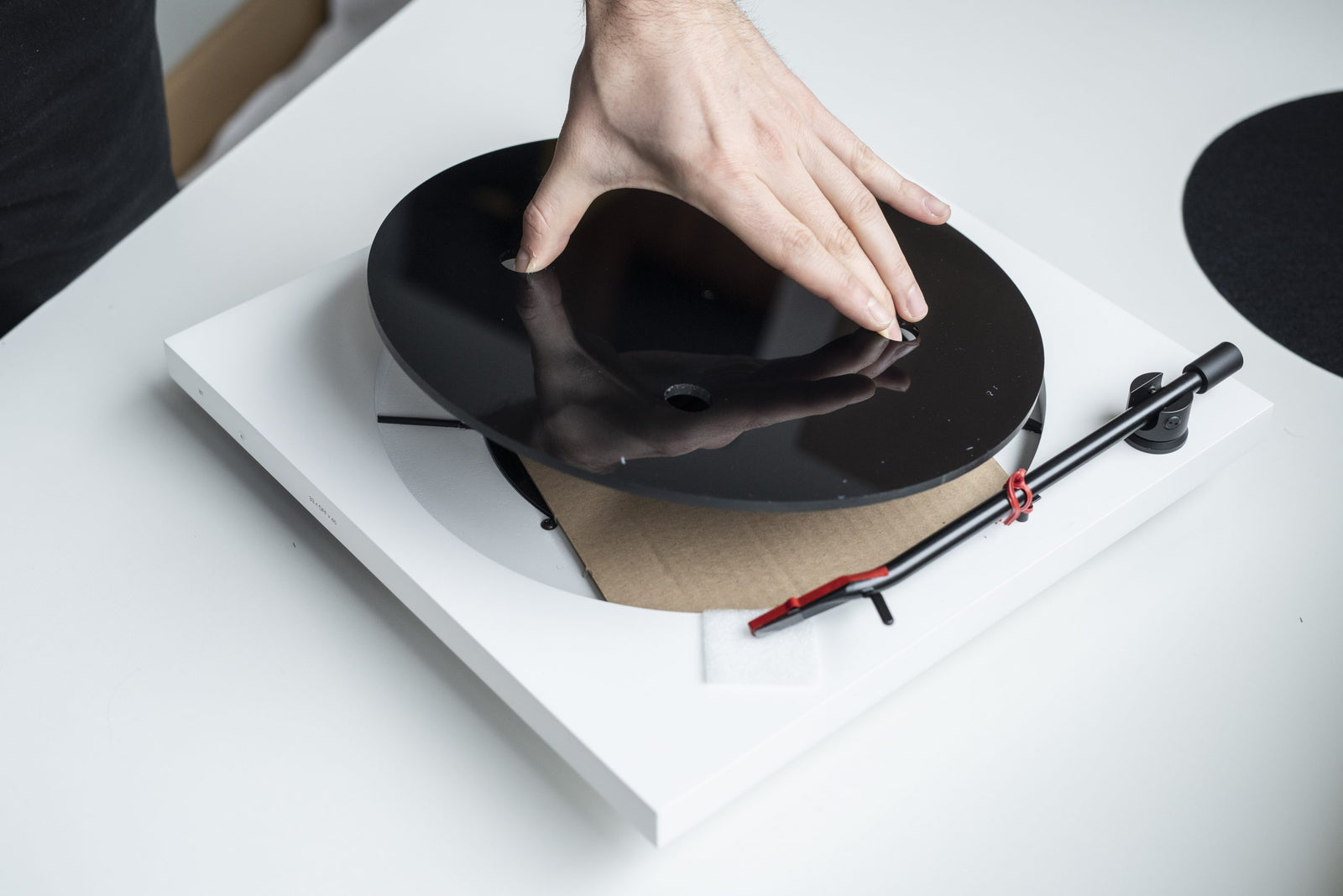

• Remove the platter and sub-platter.
• Remove the cardboard inlay.
• Reinstall the sub-platter.

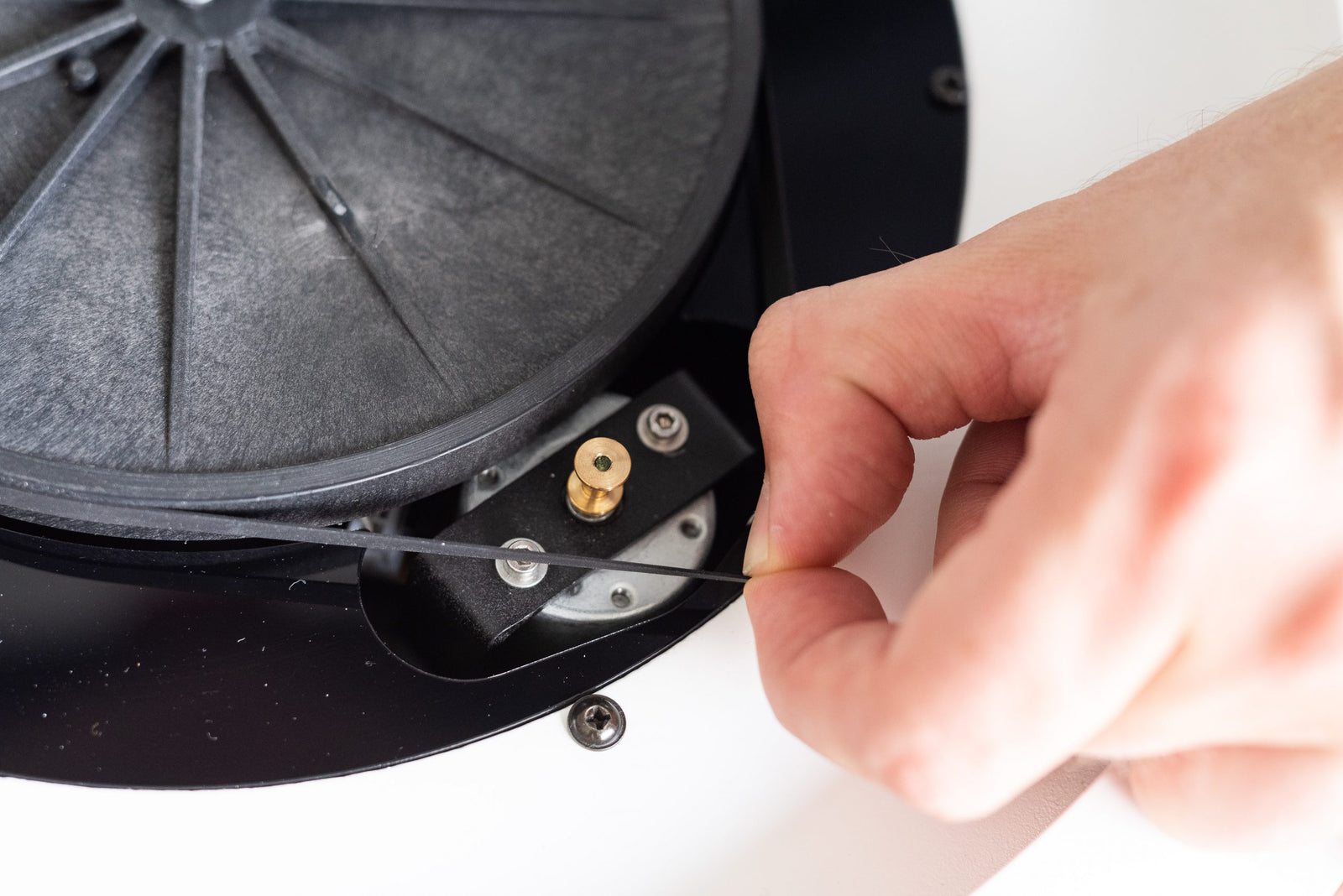

• Fit the drive belt around the motor pulley.
• Reinsall the platter on top of subpaltter with belt placed around motor pulley.

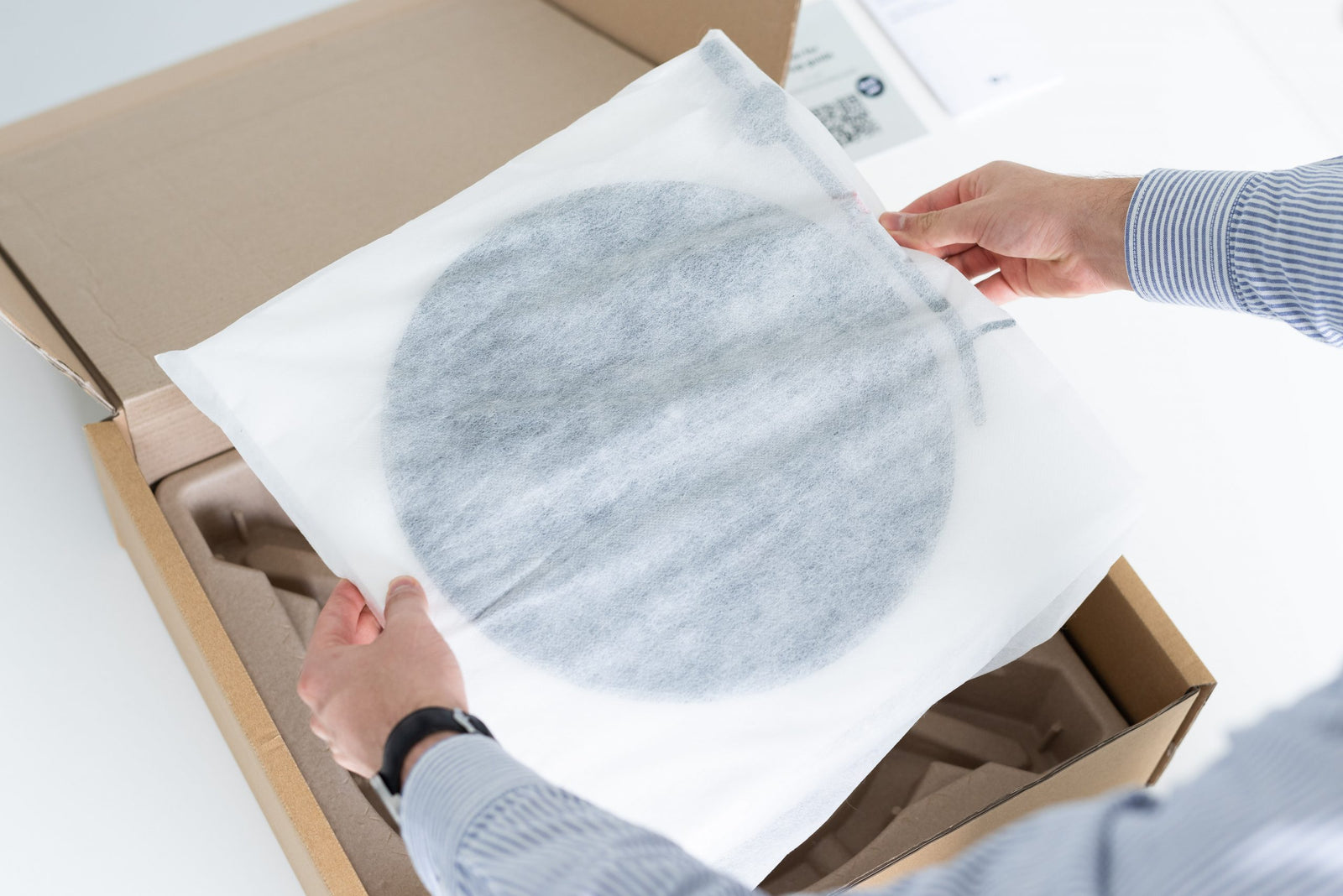

• Place the felt mat on the platter.

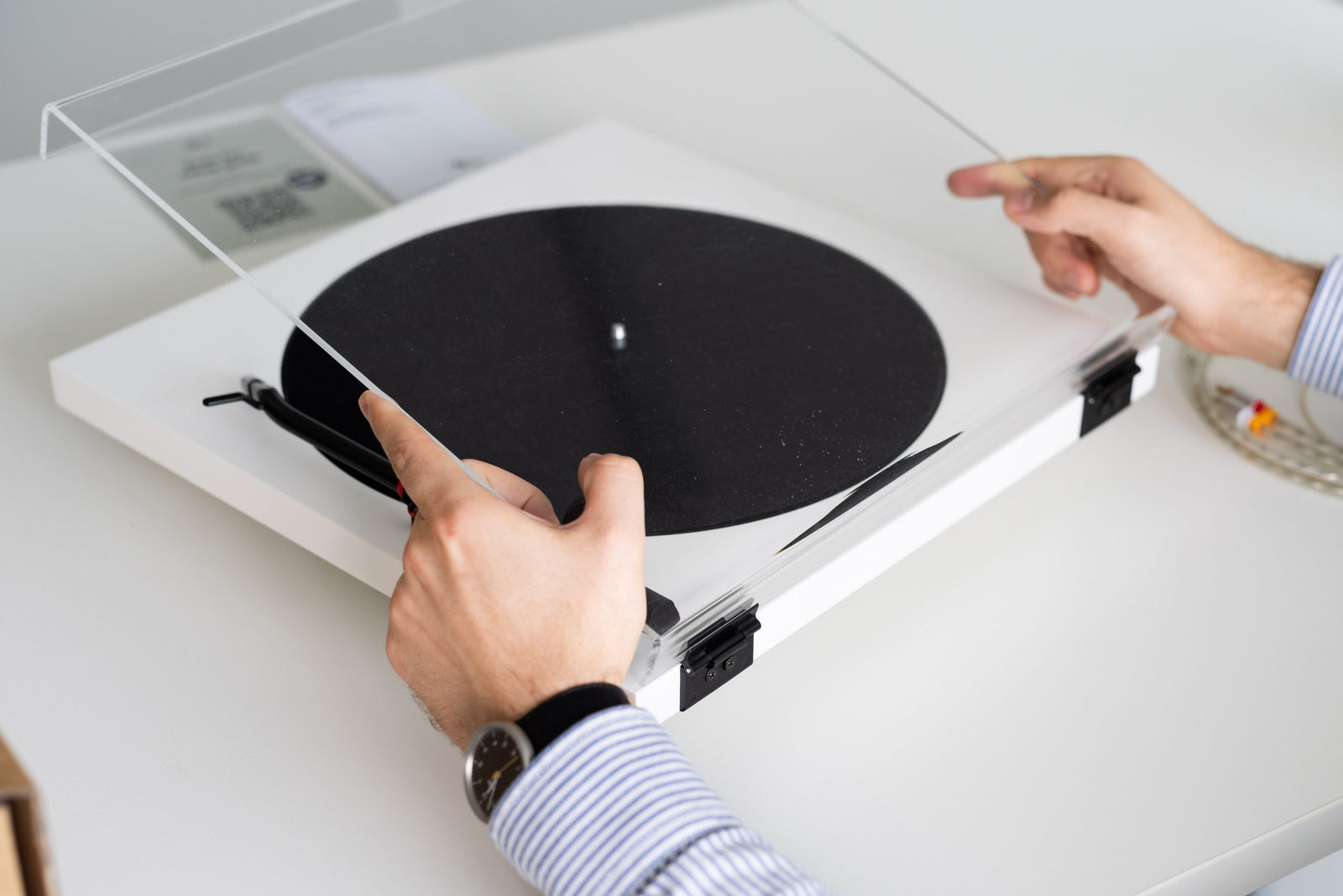

Step 8: Install dustcover - if applicable.

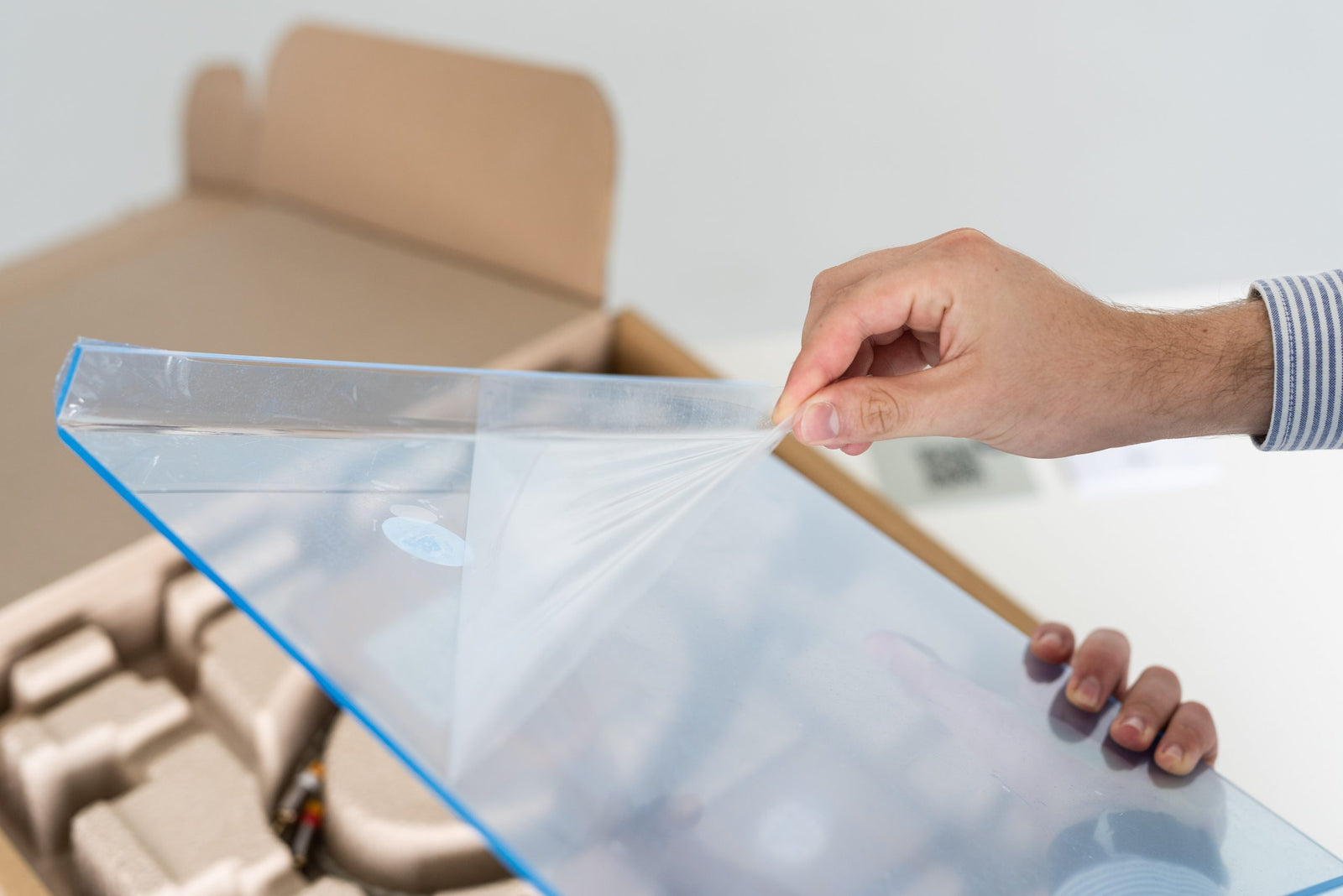

• Remove protective film.

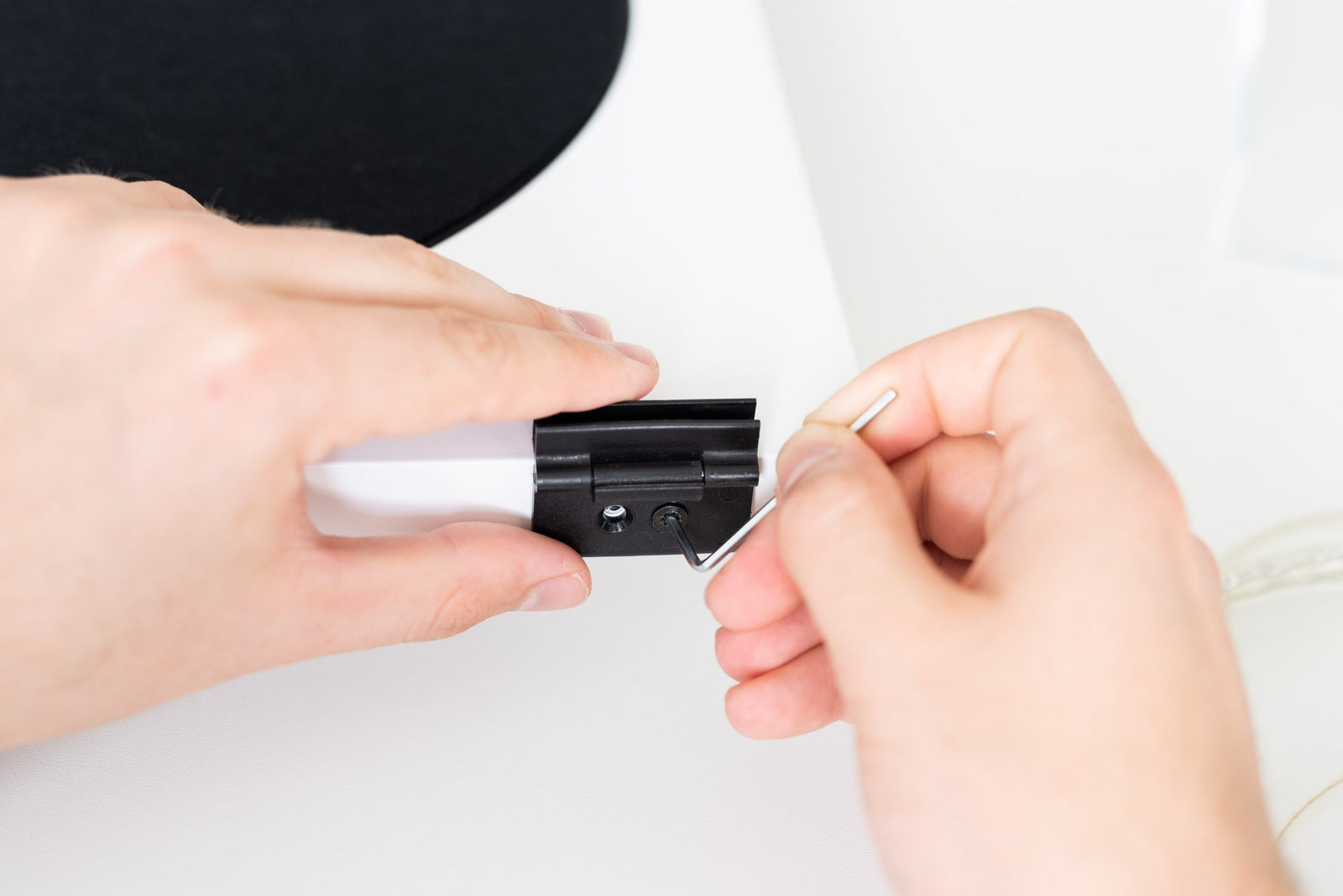

• Attach the hinges to turntable using included screws and allen key.

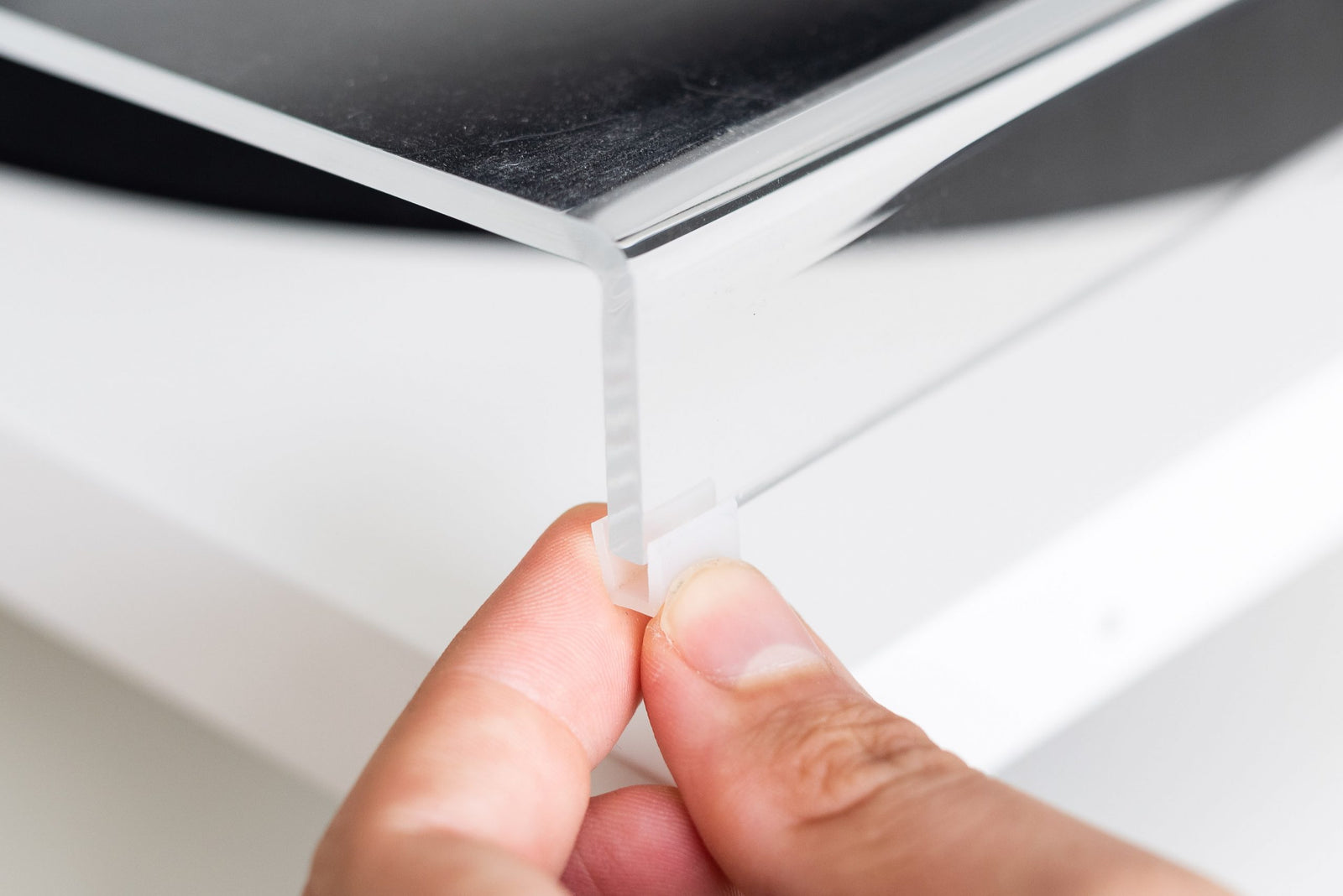

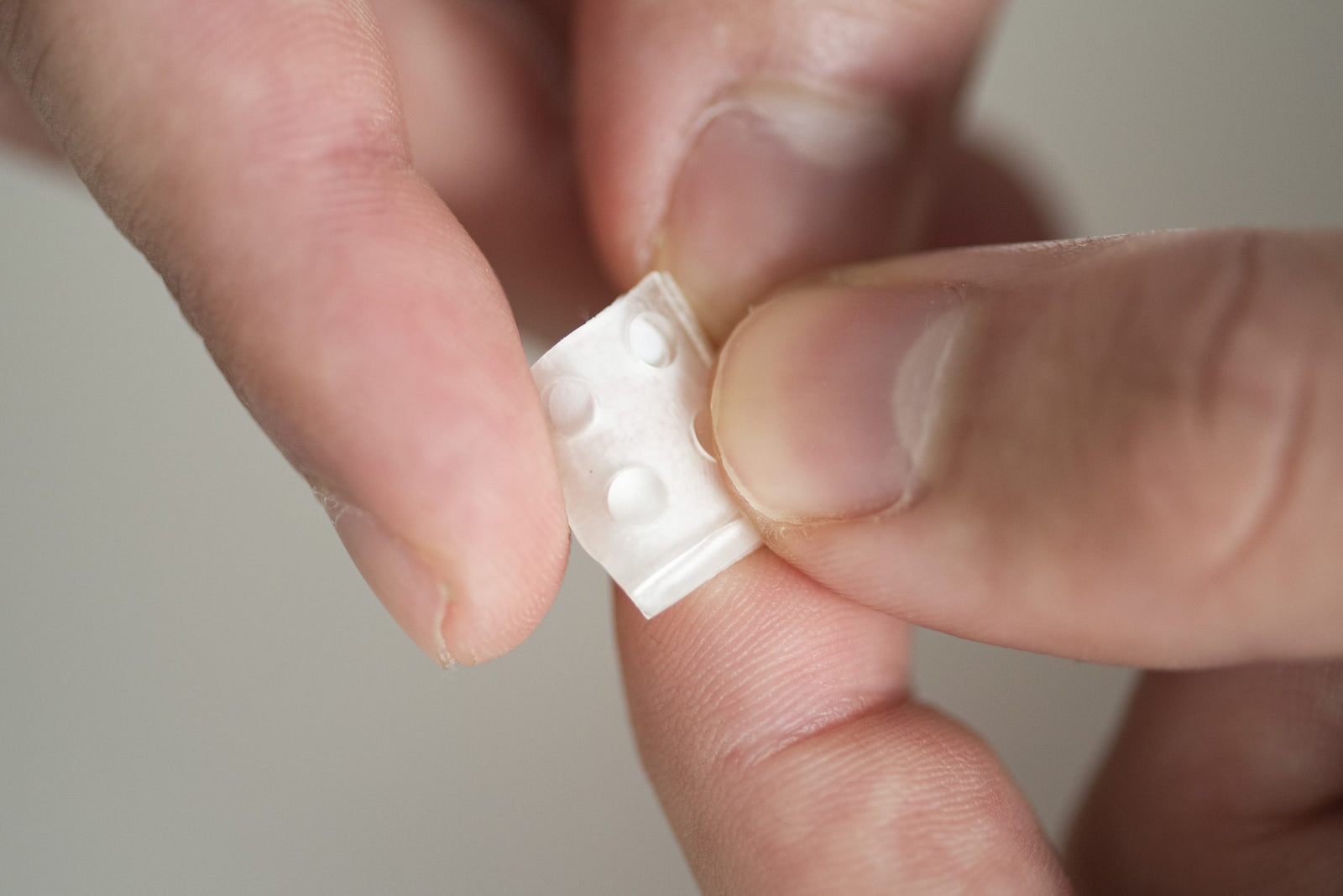

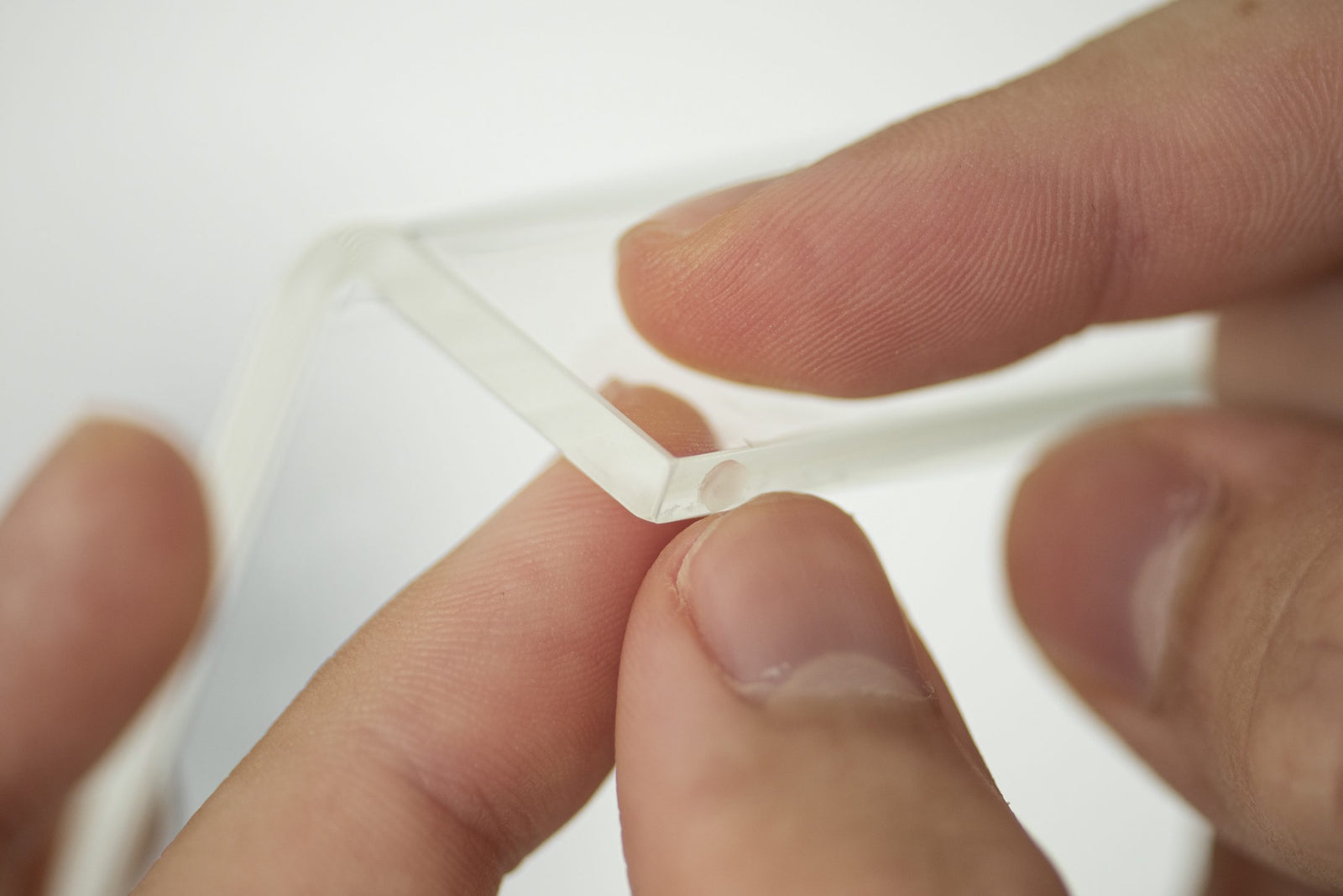

• Place damping pads on the front and rear edges.
• Mount Dustcover onto hinges

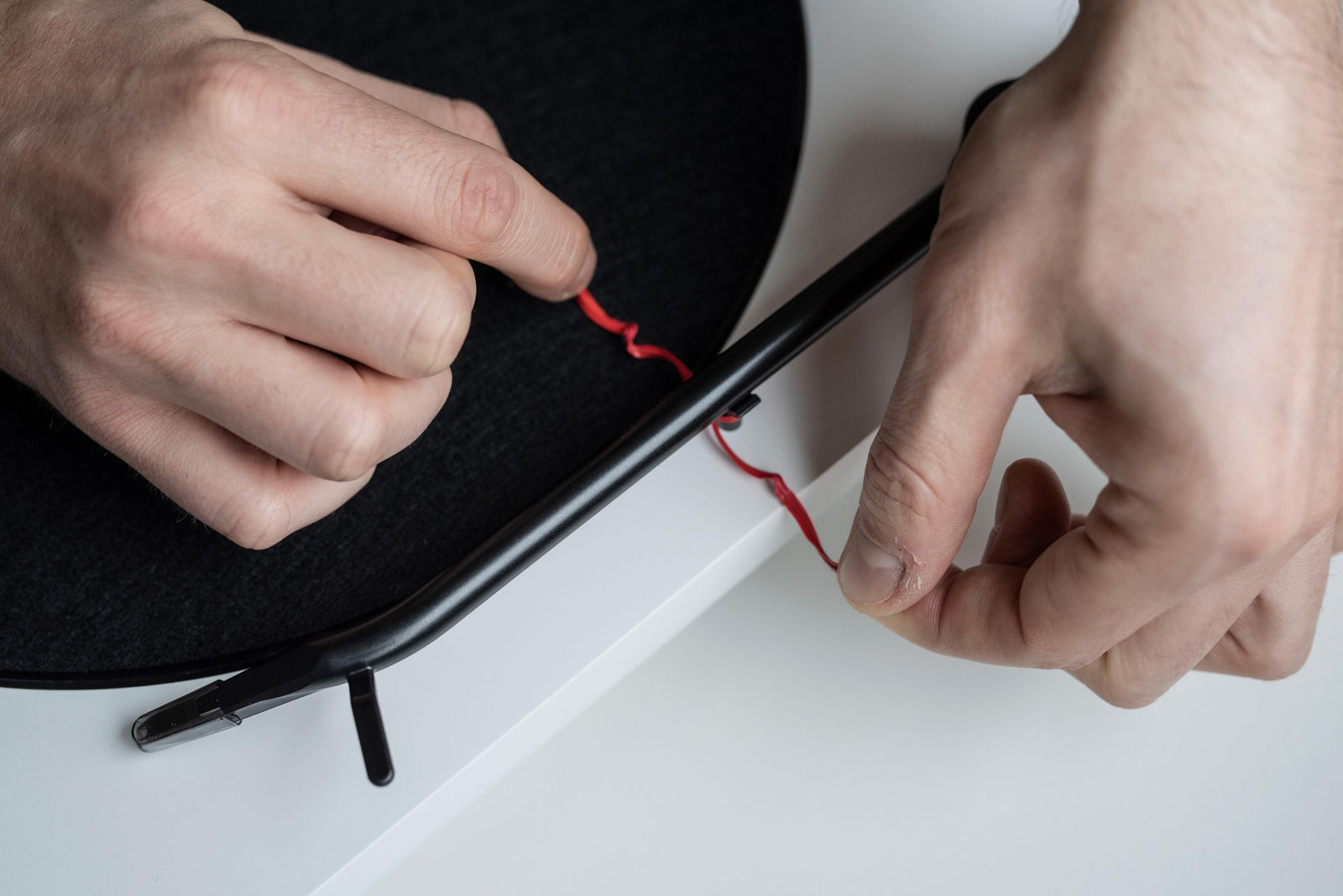

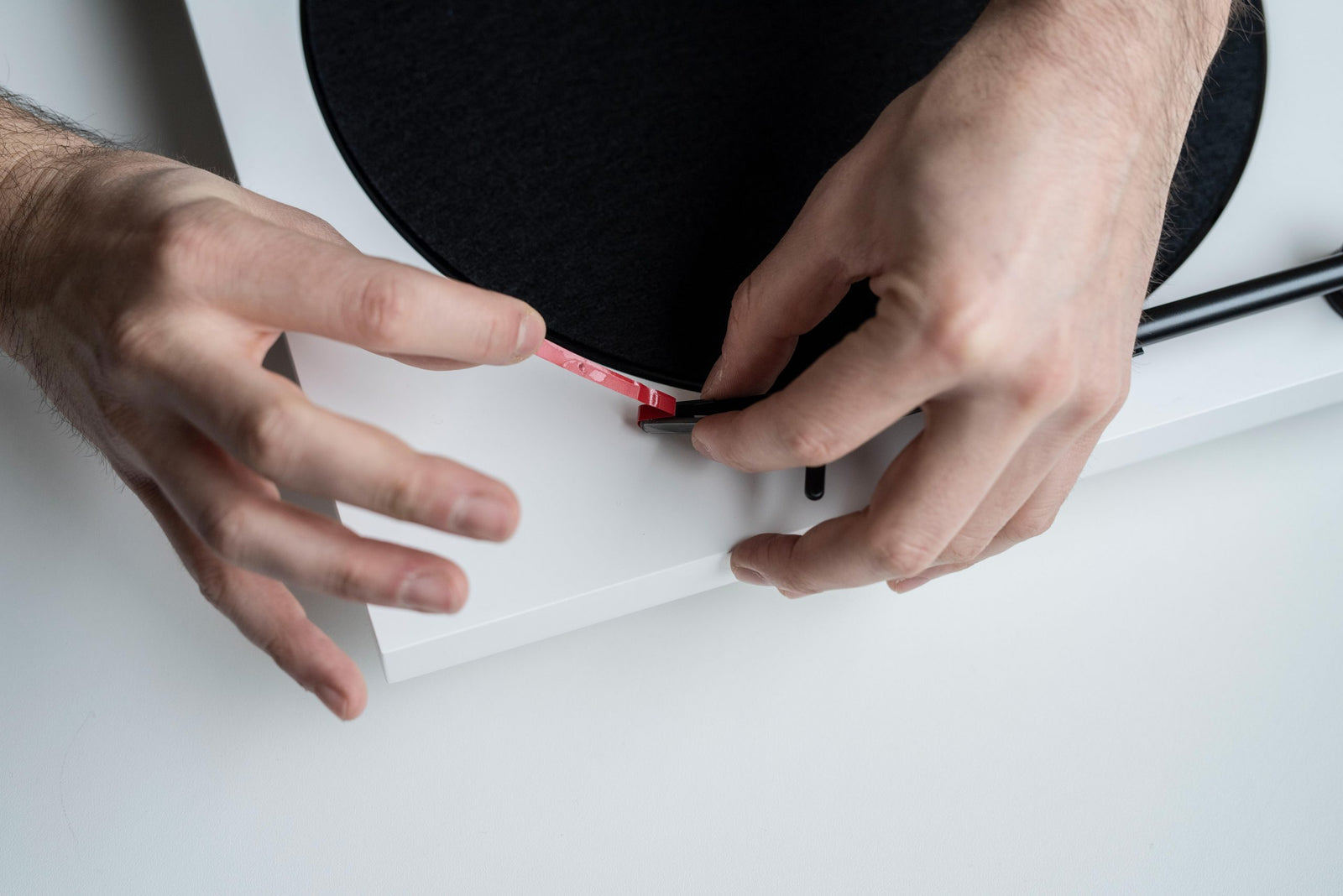

Step 9: Remove the cartridge protector & tonearm transport lock.
Attach the hinges, mount the dustcover, and place damping pads on the front edge.

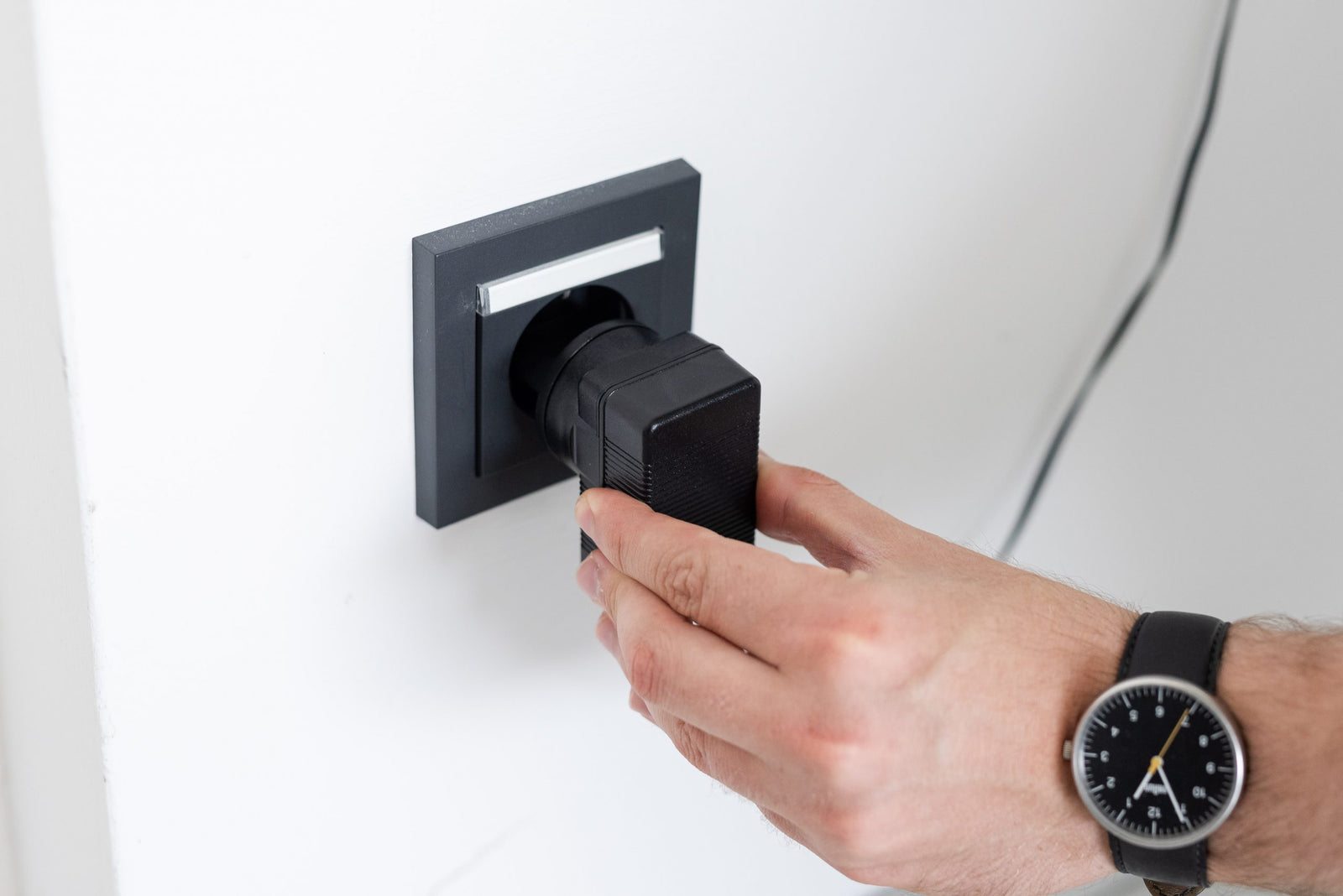

Step 10: Connect to power.

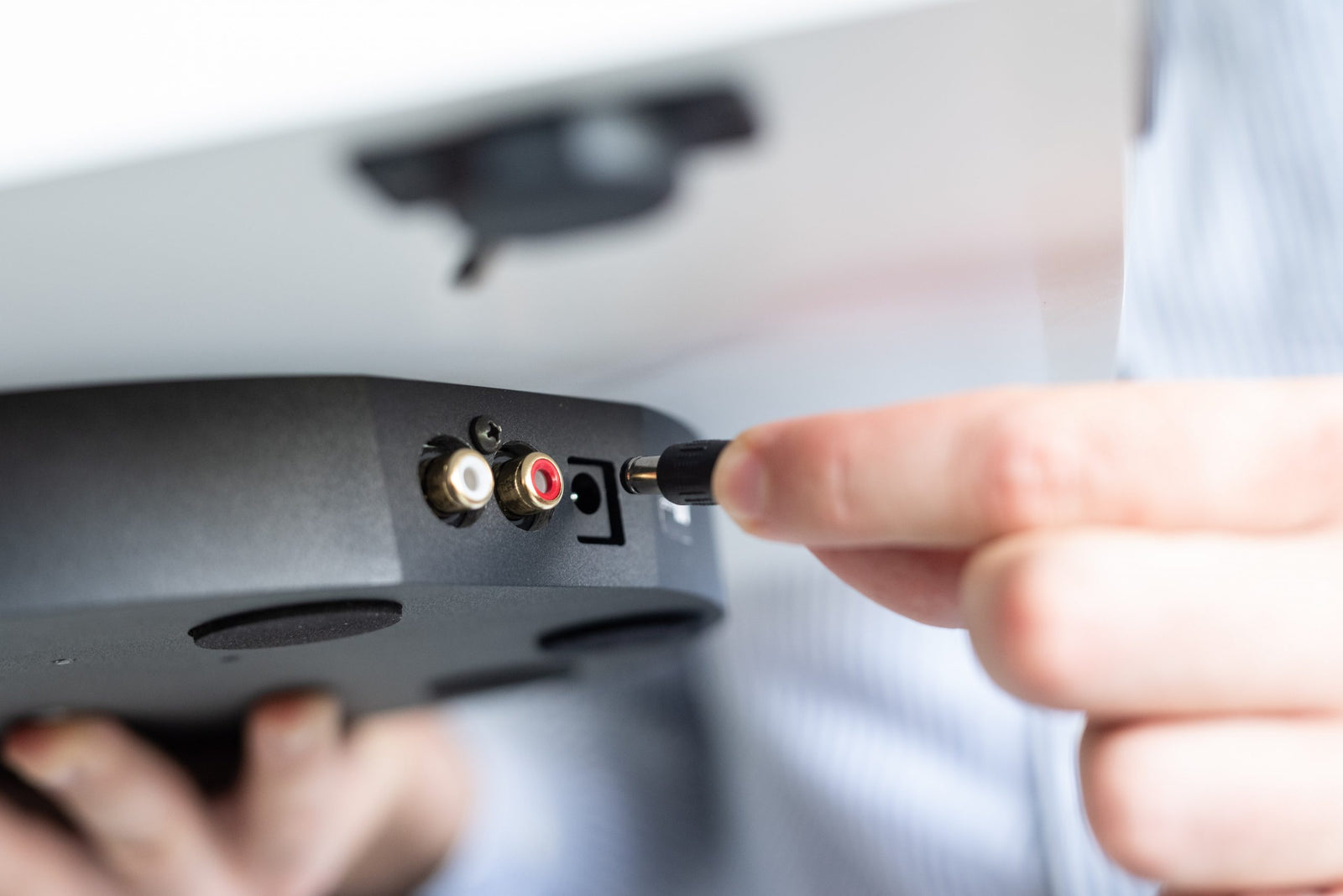

Connect the power supply’s barrel connector to the turntable and plug the adapter into your chosen outlet.
Your'e ready to listen!
Almost - you'll just need to connect your TONE Factory factory turntable to your stereo or connect to your Bluetooth device. For instructions on how to connect use the buttons below.
